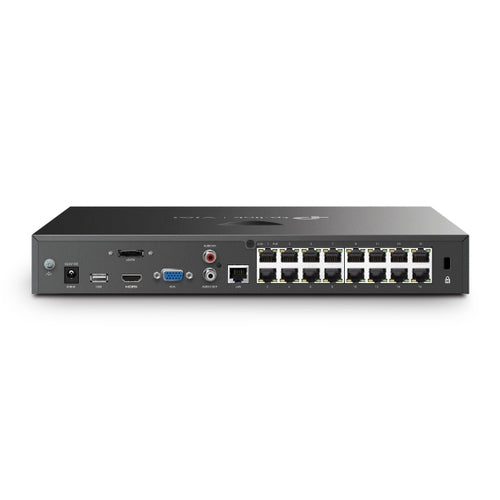

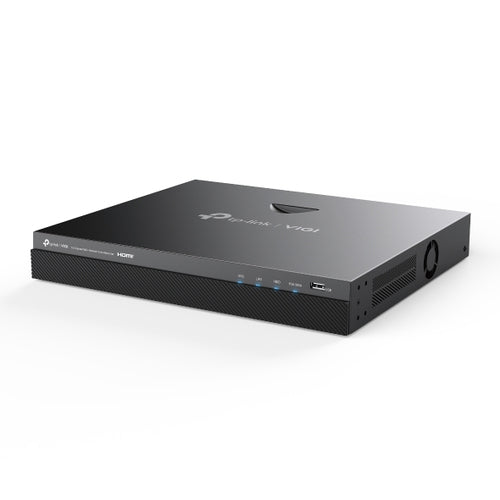

TP-Link VIGI NVR2016H-16MP network video recorder Black
TP-Link VIGI NVR2016H-16MP network video recorder Black
Regular price
$314.31 USD
Regular price
$799.00 USD
Sale price
$314.31 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link VIGI NVR2016H-16MP network video recorder Black
| Video input channels | 16 channels |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection | Yes |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Playback controls | Yes |
| Maximum frame rate | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Recording modes | Manual, Schedule |
| Wi-Fi | No |
| HDD capacity | 0 GB |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Video input channels | 16 channels |
|---|---|
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection | Yes |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Playback controls | Yes |
| Maximum frame rate | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Recording modes | Manual, Schedule |
General
| Wi-Fi | No |
|---|
General
| HDD capacity | 0 GB |
|---|---|
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
General
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| eSATA | Yes |
| Line-in | Yes |
| Audio output | 1 |
| DC-in jack | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
General
| Reset button | Yes |
|---|---|
| Product colour | Black |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
General
| Power consumption (max) | 40 W |
|---|---|
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 140 W |
General
| Operating temperature (T-T) | -10 - 55 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
General
| Width | 330 mm |
|---|---|
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
General
| Cables included | AC |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
