Tp-link Usa Corporation

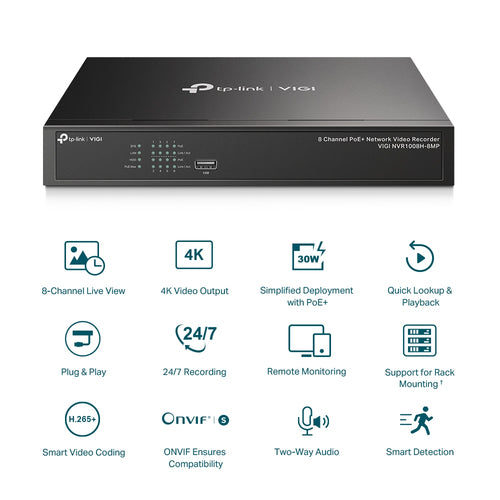

TP-Link VIGI 8 Channel PoE+ Network Video Recorder
TP-Link VIGI 8 Channel PoE+ Network Video Recorder
Regular price
$178.51 USD
Regular price
$399.00 USD
Sale price
$178.51 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link VIGI 8 Channel PoE+ Network Video Recorder
| Video input channels | 8 channels |
| Alarm input channels | 8 |
| Alarm output channels | 1 |
| Video recording modes | 720p, 1080p, 2160p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720 |
| Resolution at capture speed | 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps |

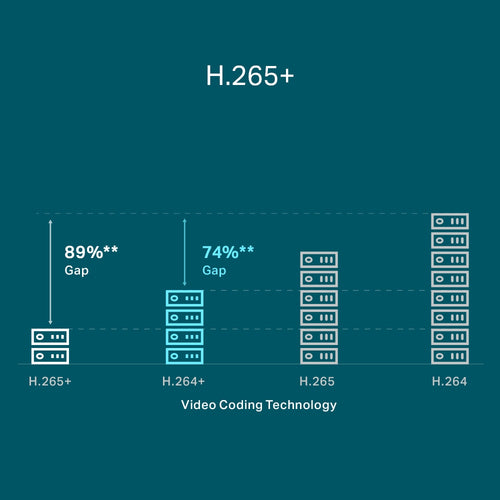

| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Wi-Fi | No |
| HDD capacity | 0 GB |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 1 |

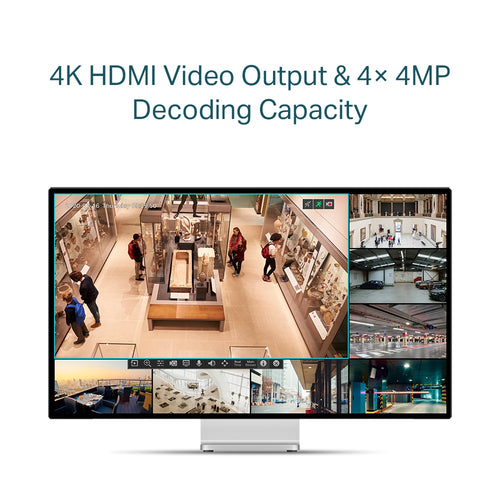

| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Video input channels | 8 channels |
|---|---|
| Alarm input channels | 8 |
| Alarm output channels | 1 |
| Video recording modes | 720p, 1080p, 2160p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720 |
| Resolution at capture speed | 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
General
| Wi-Fi | No |
|---|
General
| HDD capacity | 0 GB |
|---|---|
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
General

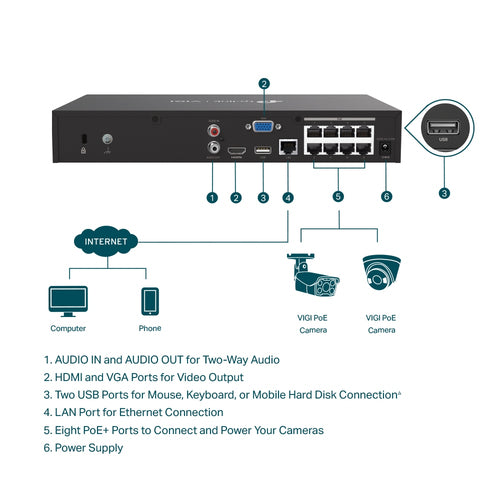

| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Supported network protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
General
| LED indicators | Yes |
|---|---|
| Product colour | Black |
General
| Power consumption (typical) | 4.82 W |
|---|---|
| Output current | 2.43 A |
| Output voltage | 53.5 V |

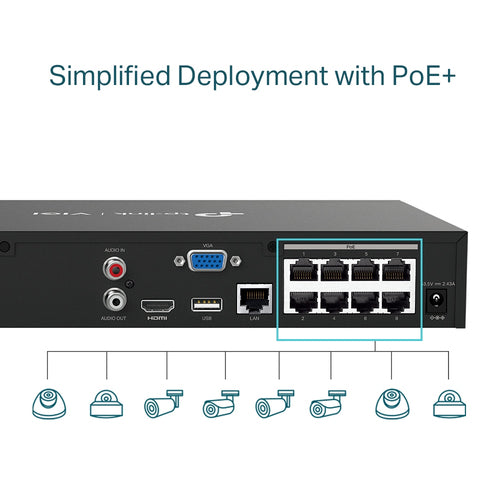

| Total Power over Ethernet (PoE) budget | 119 W |
General
| Operating temperature (T-T) | -10 - 55 °C |
|---|
General
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 2.1 kg |
