Tp-link Usa Corporation

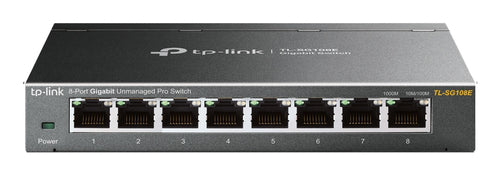

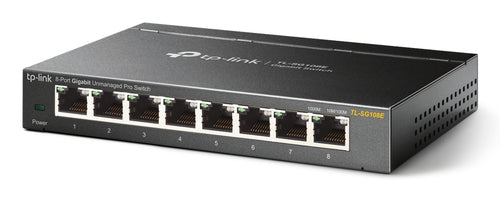

TP-Link TL-SG108E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-Link TL-SG108E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Regular price
$30.99 USD
Regular price
Sale price
$30.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link TL-SG108E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Switching capacity | 16 Gbit/s |
| Throughput | 11.9 Mpps |
| MAC address table | 4000 entries |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
General
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Number of VLANs | 32 |
General
| Switching capacity | 16 Gbit/s |
|---|---|
| Throughput | 11.9 Mpps |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
General
| IGMP snooping | Yes |
|---|
General
| Number of multicast groups filtered | 128 |
|---|
General
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
General
| Power supply included | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 12.55 BTU/h |
General
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25 mm |
General
| Cables included | AC |
|---|---|
| User guide | Yes |
General
| Package type | Box |
|---|
General
| Certification | FCC, CE, RoHS |
|---|
General
| Harmonized System (HS) code | 85176990 |
|---|
