Tp-link Usa Corporation

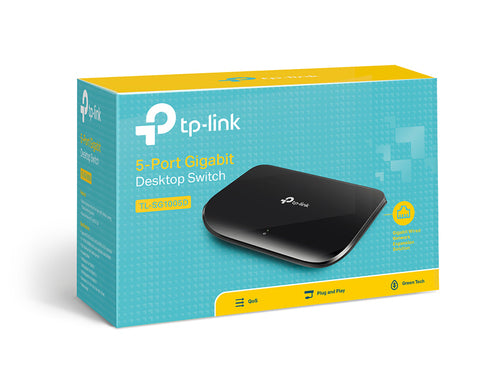

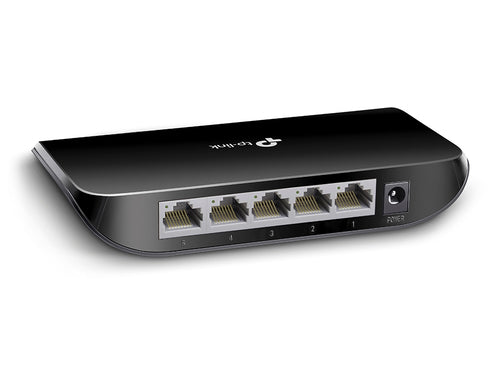

TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Regular price
$20.99 USD
Regular price
Sale price
$20.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Switching capacity | 10 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|
General
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
General
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
General
| Supported data transfer rates | 10/100/1000 Mbit/s |
|---|---|
| Switching capacity | 10 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
General
| Rack mounting | No |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
General
| Power source | DC |
|---|---|
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (max) | 2.41 W |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 8.22 BTU/h |
General
| Width | 165 mm |
|---|---|
| Depth | 108 mm |
| Height | 28 mm |
General
| Quick start guide | Yes |
|---|
General
| Package width | 145 mm |
|---|---|
| Package depth | 108 mm |
| Package height | 85 mm |
| Package weight | 240 g |
