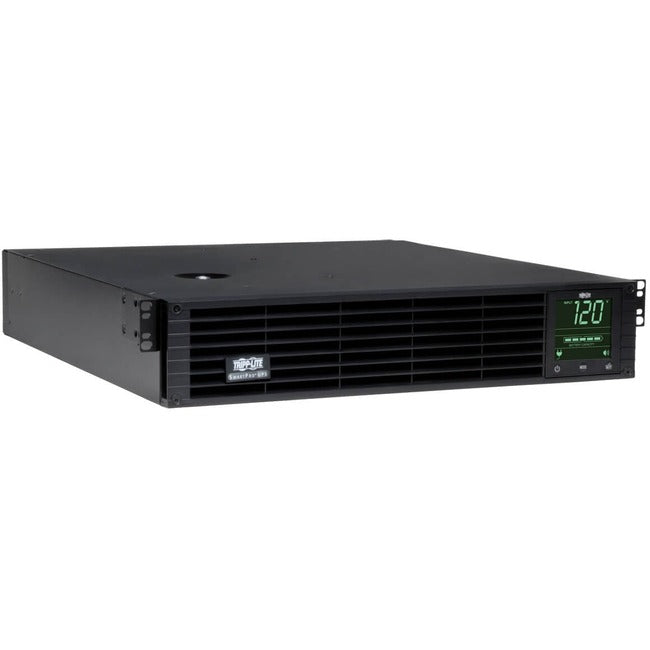

TAA Compliant 2200VA UPS rack

The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2200VA line interactive UPS system for server, network and telecommunications equipment. 2U rackmount or tower form factor with an installed depth of only 19 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT-3U external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages to maintain regulated 100, 110, 120v selectable output over an input range of 83-145V. Includes NEMA 5-20P input plug and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 3-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM two post rack & wallmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. 2-year warranty and $250,000 connected equipment insurance; extended warranty and service contracts available. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases SmartPro line interactive UPS system is ideal for voice, data, medical and industrial networking applications Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages Maintaints continuous operation through blackouts, voltage fluctuations and surges Corrects line voltage conditions as low as 83V and as high as 145 back to selectable 100/110/120V nominal values Standard internal battery set offers 16 minutes at half load (800w) and 6 minutes at full load (1600w) Optional BP48V24-2U and BP48V60RT3U external rack/tower battery packs enable extended runtime operation Compact rackmount form factor installs using only 2 rack spaces (2U) with a maximum installed depth of only 19 inches Ships with all mounting accessories for 4 post rackmount installation Optional 2POSTRMKITWM enables 2 post rackmount or wallmount installation Optional 2-9USTAND accessory enables small-footprint upright tower placement Network interfaces support simultaneous communications via built-in USB, DB9 serial and SNMPWEBCARD slot HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, with the built-in ability to shutdown any number of additional servers over IP UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter sutoff, activate self-test, load bank output power control and remote reboot Built-in Emergency Power Off (EPO) interface with cable NEMA 5-20P input plug / NEMA 5-15R & NEMA 5-15/20R output receptacles Integrated 3 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual load banks (Each bank controls 1 outlet per load bank) Front panel LEDs offer current monitoring and battery charge level information UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user required 2 year manufacturer's product warranty, $250,000 ULtimate Lifetime Insurance Package Includes SM2200RMXL2UTAA TAA Compliant UPS system PowerAlert software CD-ROM USB, serial and EPO cabling Owner's manual with warranty information
The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Communications interfaces support communications via USB, DB9 serial and a slot for an optional network management card. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and auto-shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

• USB, RS232, EPO and slot for network communication card options


• 120V NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets


• Extended runtime options up to 1600W


• 96% line-mode efficiency, 2 switched load banks


• 0.9 Power Factor, Interactive LCD interface


• 120V output, Corrects brownouts and overvoltages from 83V to 145V


• 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave


• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
