Tp-link Usa Corporation

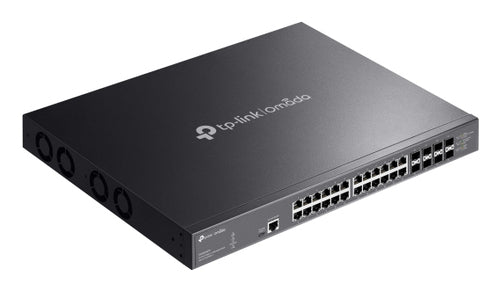

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
Regular price
$1,720.99 USD
Regular price
Sale price
$1,720.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Unified static configuration | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| 2.5G Ethernet (copper) ports quantity | 24 |
| 10G Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 8 |
| Console port | RJ-45/USB Type-C |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Managed |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Unified static configuration | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
General
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| 2.5G Ethernet (copper) ports quantity | 24 |
| 10G Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 8 |
| Console port | RJ-45/USB Type-C |
General
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Address Resolution Protocol (ARP) entries (max) | 510 |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Yes |
| Virtual LAN features | MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 4000 |
General
| Switching capacity | 640 Gbit/s |
|---|---|
| Forwarding rate | 240 Mpps |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
General
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Static port security | Yes |
| Authentication | Guest VLAN |
| DoS attack prevention | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| CPU defense | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR) |
General
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Yes |
General
| Device link detection protocol (DLDP) | Yes |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert |
General
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | DIN rail |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
General
| Firmware upgradeable | Yes |
|---|---|
| Fanless | No |
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
General
| Power source | AC |
|---|---|
| Power supply included | No |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 953.7 W |
| Power consumption (max) | 1010.2 W |
| Power saving mode (EEE) | Yes |
General
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 770 W |
General
| Packaging content | Console Cable |
|---|
General
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 3444.7 BTU/h |
General
| Width | 440 mm |
|---|---|
| Depth | 330 mm |
| Height | 44 mm |
General
| Cables included | Power |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
General
| Mounting brackets included | Yes |
|---|---|
| Rubber feet | Yes |
| Screws included | Yes |
General
| Sustainability organizations | Accountability |
|---|
General
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
