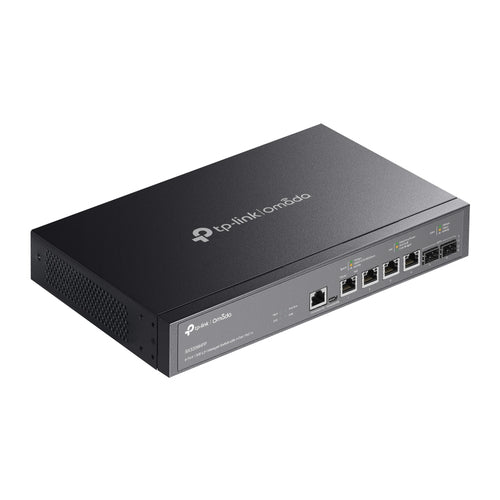

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

$425.99 USD
$425.99 USD
Sale Sold out
Shipping calculated at checkout.

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
System event log Yes
MIB support Yes
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
SFP+ module slots quantity 2
Console port RJ-45/Micro-USB
Power connector AC-in jack
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support Yes
Port mirroring Yes
IP routing Yes

Shipping & Returns

In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.

Specifications

General

Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
System event log Yes
MIB support Yes

General

Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
SFP+ module slots quantity 2
Console port RJ-45/Micro-USB
Power connector AC-in jack

General

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support Yes
Port mirroring Yes
IP routing Yes
Routing entries 512
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
VLAN support Yes
Virtual LAN features Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs 4000

General

Switching capacity 120 Gbit/s
Forwarding rate 89.28 Mpps
MAC address table 32000 entries
Static route Yes
Number of static routes 48
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 16 MB

General

DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL) Yes
IGMP snooping Yes
Security algorithms HTTPS, SSL/TLS
SSH/SSL support Yes
Loop protection Yes
BPDU filtering/protection Yes
Authentication Guest VLAN
Authentication type AAA, RADIUS, TACACS+

General

Multicast support Yes
Multicast Listener Discovery (MLD) snooping MLD v1/v2

General

Management protocols SNMP v1/v2c/v3

General

Rack mounting Yes
Product colour Black
LED indicators Yes
Number of fans 2 fan(s)

General

Minimum system requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

General

Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 244.9 W

General

Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 60 W
Total Power over Ethernet (PoE) budget 200 W

General

Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 835.67 BTU/h

General

Width 294 mm
Depth 180 mm
Height 44 mm

General

Cables included AC
Quick start guide Yes
Rack mount kit Yes

General

Certification CE, FCC, RoHS
