Tp-link Usa Corporation

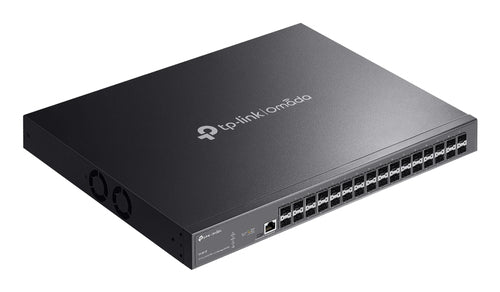

TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch

Name: TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch
Brand: Tp-link Usa Corporation
SKU: 14774367
Price: 793.99 USD
Availability: InStock

$793.99 USD

Sale Sold out

Shipping calculated at checkout.

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
MIB support	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
Basic switching RJ-45 Ethernet ports quantity	1
Installed SFP+ modules quantity	32
Console port	RJ-45/Micro-USB
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
IPv4 routes	48

Shipping & Returns

In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.

Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
MIB support	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

General

Basic switching RJ-45 Ethernet ports quantity	1
Installed SFP+ modules quantity	32
Console port	RJ-45/Micro-USB

General

Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
IPv4 routes	48
IPv6 routes	48
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs	30

General

Switching capacity	640 Gbit/s
Forwarding rate	240 Mpps
MAC address table	32000 entries
Number of queues	8
Static route	Yes
Number of static routes	128
Number of IP interfaces	128
Jumbo frames support	Yes
Jumbo frames	9
Packet buffer memory	24 MB

General

DHCP features	DHCP relay, DHCP server, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Password protection	Yes
Authentication type	AAA, TACACS+
Queue scheduling algorithms	Priority queuing (PQ), SP, Weighted Round Robin (WRR)

General

Multicast support	Yes
Number of multicast groups filtered	4000
Multicast Listener Discovery (MLD) snooping	Yes

General

GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP
IP Source Guard (IPSG)	Yes

General

Rack mounting	Yes
Product colour	Black
Redundant fans support	Yes
Number of fans	2 fan(s)

General

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	49.4 W

General

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
