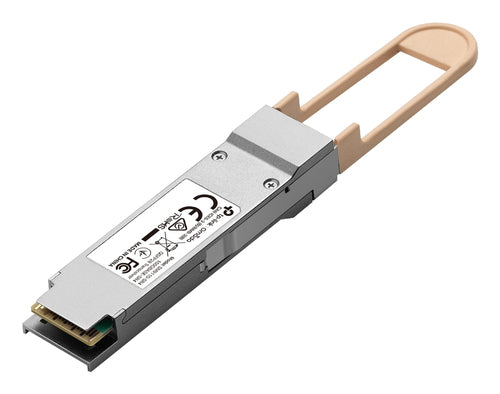

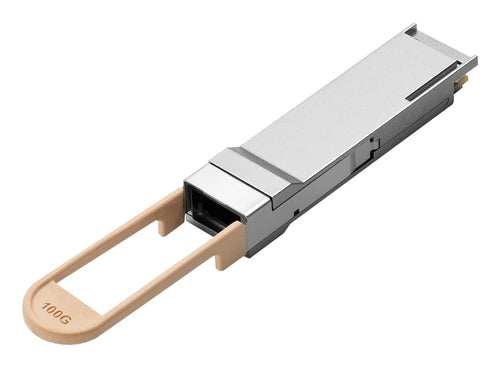

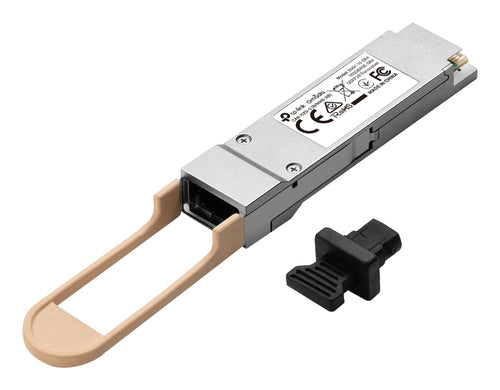

TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm
TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm
Regular price
$75.99 USD
Regular price
Sale price
$75.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO-12, MTP |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Fiber ethernet cabling technology | 40GBASE, 100GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Metallic |
| Form factor | QSFP28 |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO-12, MTP |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Fiber ethernet cabling technology | 40GBASE, 100GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
General
| Product colour | Metallic |
|---|---|
| Form factor | QSFP28 |
| Plug and Play | Yes |
| Hot-swap | Yes |
General
| Input voltage | 3.3 V |
|---|
General
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
General
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
General
| Width | 124 mm |
|---|---|
| Depth | 18.4 mm |
| Height | 11.7 mm |
General
| Quantity per pack | 1 pc(s) |
|---|
General
| User guide | Yes |
|---|
General
| Country of origin | China |
|---|
