Tp-link Usa Corporation

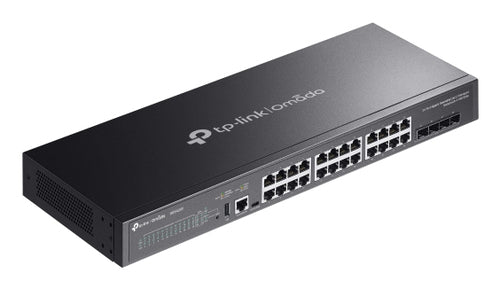

TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
Regular price
$531.99 USD
Regular price
Sale price
$531.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
General
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
General
| Switching capacity | 128 Gbit/s |
|---|---|
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
General
| DHCP features | DHCP relay, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| IP-MAC-Port binding | Yes |
| Password protection | Yes |
General
| Multicast support | Yes |
|---|
General
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
General
| Physical stacking (units) | 4 |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor frequency | 1200 MHz |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Firmware upgradeable | Yes |
| Telnet | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 519.543 h |
General
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 19.6 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Management level | 4 |
|---|---|
| Bandwidth | 64 Gbit/s |
General
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 66.87 BTU/h |
General
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
General
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
General
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
