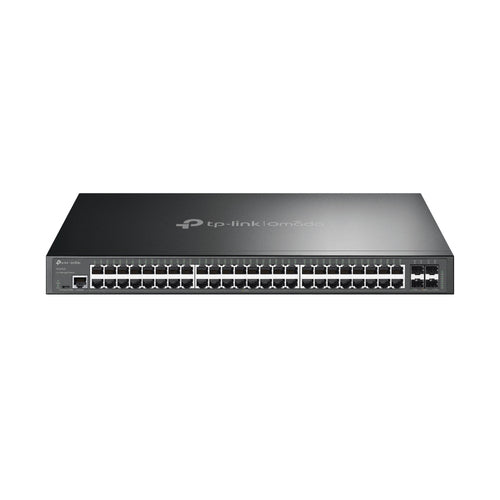

• TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
1 1

Tp-link Usa Corporation

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

$552.99 USD
$552.99 USD
Sale Sold out
Shipping calculated at checkout.

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
System event log Yes
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Public MIB Y
Huawei-proprietary MIB Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45/Micro-USB
Power connector AC-in jack
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support Yes

Shipping & Returns

In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.

Specifications

General

Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
System event log Yes
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Public MIB Y
Huawei-proprietary MIB Y

General

Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45/Micro-USB
Power connector AC-in jack

General

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support Yes
Port mirroring Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
IPv4 routes 48
IPv6 routes 48
VLAN support Yes
Virtual LAN features Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs 4000

General

Switching capacity 176 Gbit/s
Forwarding rate 130.9 Mpps
MAC address table 16000 entries
Static route Yes
Number of static routes 48
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 12 MB

General

DHCP features DHCP client, DHCP relay, DHCP server
Access Control List (ACL) Yes
IGMP snooping Yes
IGMP proxy Yes
MAC address filtering Yes
Static port security Yes
SSH/SSL support Yes
Loop protection Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Authentication Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Password protection Yes
Authentication type AAA, RADIUS, TACACS+
Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)

General

Multicast support Yes
Multicast Listener Discovery (MLD) snooping Y

General

Management protocols SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP) Yes
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

General

Rack mounting Yes
Form factor 1U
Product colour Black
LED indicators Yes
Number of fans 0 fan(s)

General

Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 32.72 W

General

Power over Ethernet (PoE) No

General

Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 111.65 BTU/h

General

Width 440 mm
Depth 220 mm
Height 44 mm

General

Cables included AC
Quick start guide Yes
Rack mount kit Yes

General

Rack rails Yes
Package type Box

General

Certification CE, FCC, RoHS
