Viewsonic

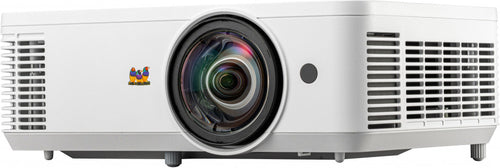

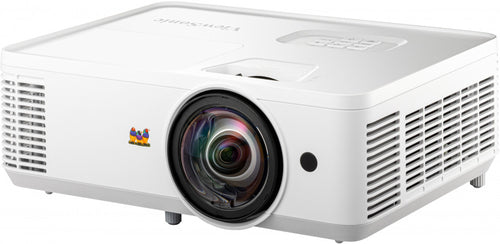

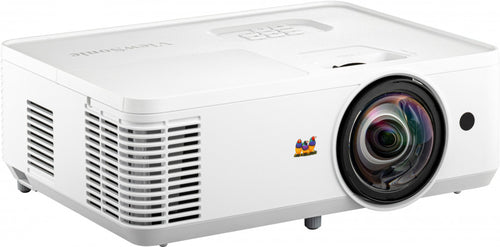

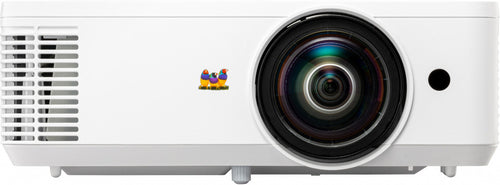

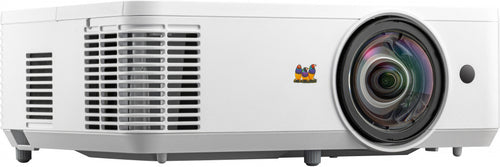

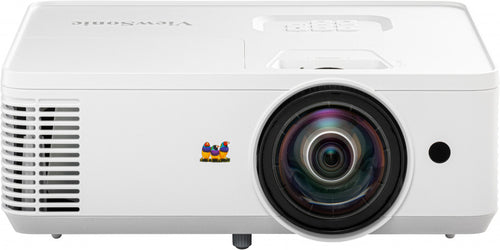

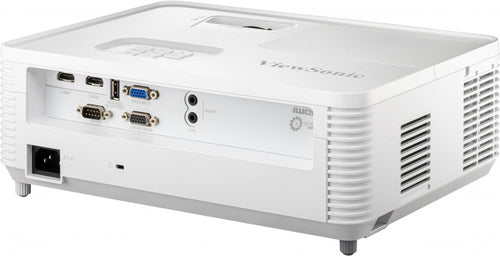

Viewsonic PS502W data projector Short throw projector 4000 ANSI lumens WXGA (1280x800) White
Viewsonic PS502W data projector Short throw projector 4000 ANSI lumens WXGA (1280x800) White
Regular price
$837.99 USD
Regular price
$929.00 USD
Sale price
$837.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Viewsonic PS502W data projector Short throw projector 4000 ANSI lumens WXGA (1280x800) White
| Smart projector | No |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 0.67 - 3.36 m |
| Projector brightness | 4000 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 15000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -19 - 19° |
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
| Focus | Manual |
| Fixed focal length | 7.51 mm |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Smart projector | No |
|---|---|
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 0.67 - 3.36 m |
| Projector brightness | 4000 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 15000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -19 - 19° |
General
| Light source type | Lamp |
|---|---|
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
General
| Focus | Manual |
|---|---|
| Fixed focal length | 7.51 mm |
| F-number (relative aperture) | 2.8 |
| Zoom capability | Yes |
| Digital zoom | 2x |
| Throw ratio | 0.52 |
| Offset | 112.4% |
General
| Analog signal format system | NTSC, PAL, SECAM |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
General

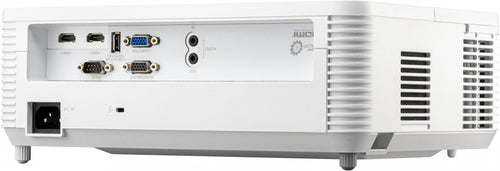

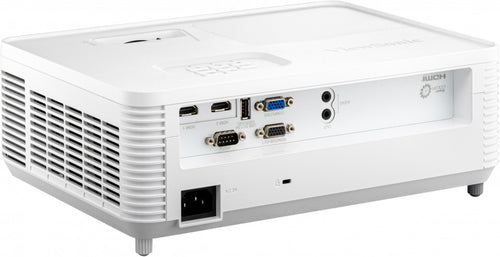

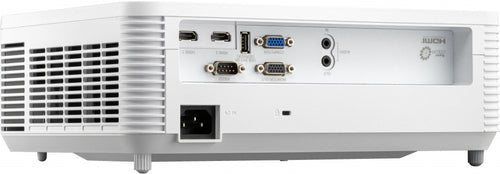

| HDMI connector type | Full-size |
|---|---|
| HDMI version | 1.4 |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| DVI port | No |
| AC (power) in | Yes |
General
| Smart TV | No |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
General
| Card reader integrated | No |
|---|
General
| Interactive | No |
|---|---|
| Noise level (economic mode) | 25 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
| HDCP version | 1.4 |
| Noise level | 34 dB |
| Air filter | Yes |
General
| Built-in speaker(s) | Yes |
|---|---|
| RMS rated power | 16 W |
General
| Market positioning | Education |
|---|---|
| Product type | Short throw projector |
| Product colour | White |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
General
| Built-in display | No |
|---|
General
| Power source | AC |
|---|---|
| Power consumption (typical) | 295 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|
General
| Width | 309 mm |
|---|---|
| Depth | 234 mm |
| Height | 115 mm |
| Weight | 2.9 kg |
| Package width | 400 mm |
| Package depth | 168 mm |
| Package height | 337 mm |
| Package weight | 4.1 kg |
General
| Remote control included | Yes |
|---|---|
| Remote control type | IR |
| Cables included | AC, VGA |
| Quick start guide | Yes |
| Warranty card | Yes |
General
| Image lag time | 33.2 ms |
|---|
General
| Pallet gross length | 102 cm |
|---|---|
| Pallet gross width | 122 cm |
| Pallet gross height | 181.5 cm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
