Viewsonic

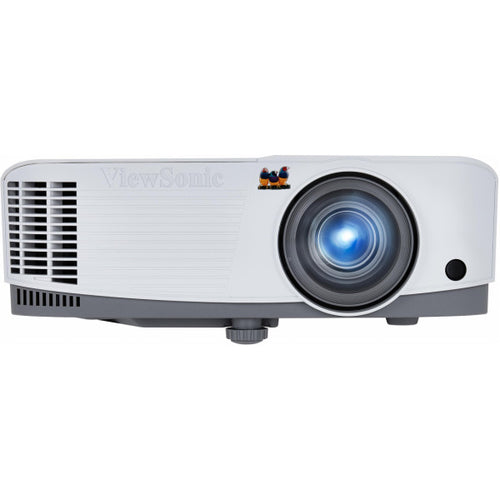

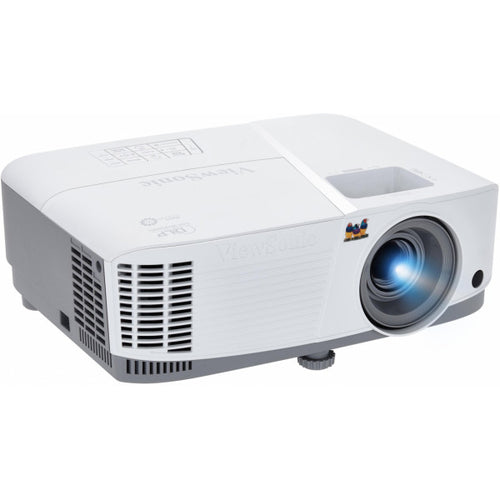

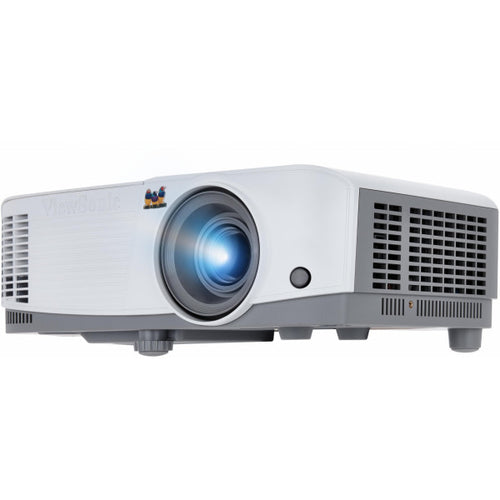

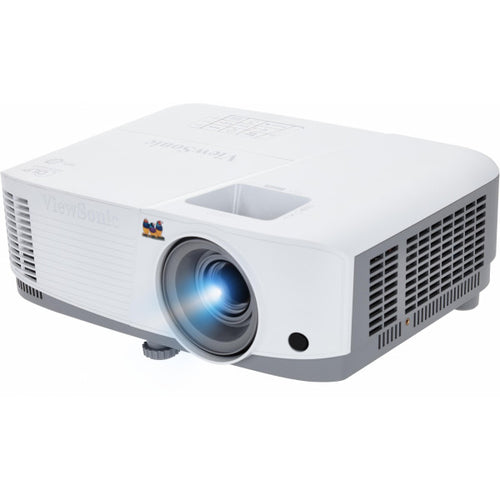

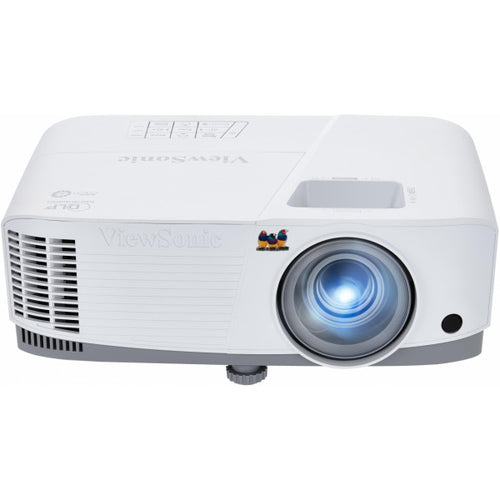

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
Regular price
$518.99 USD
Regular price
$679.00 USD
Sale price
$518.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1 - 10.98 m |
| Projector brightness | 3800 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 22000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.65 cm (0.65") |

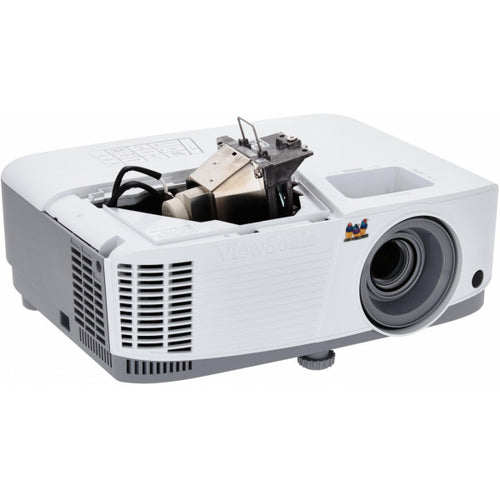

| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
| Focus | Manual |
| Focal length range | 22 - 24.1 mm |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
|---|---|
| Projection distance | 1 - 10.98 m |
| Projector brightness | 3800 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 22000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.65 cm (0.65") |
General
| Light source type | Lamp |
|---|---|
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
General
| Focus | Manual |
|---|---|
| Focal length range | 22 - 24.1 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom capability | Yes |
| Zoom ratio | 2.0:1 |
| Throw ratio | 1.55-1.7 |
| Offset | 100% |
General
| Analog signal format system | NTSC, PAL, SECAM |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

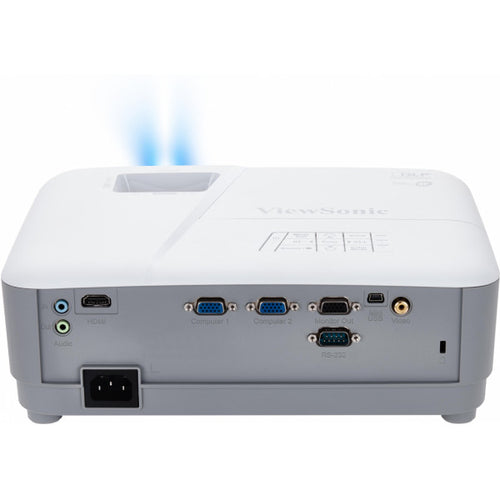

General

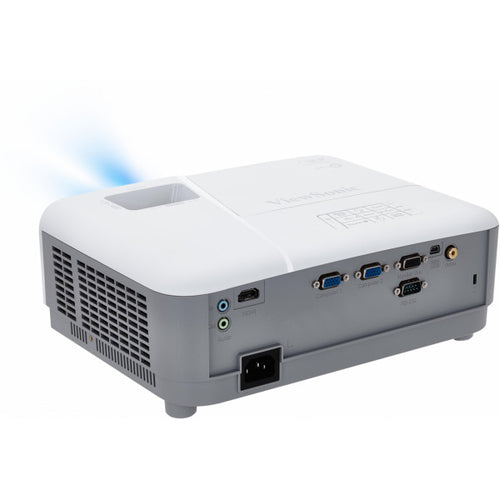

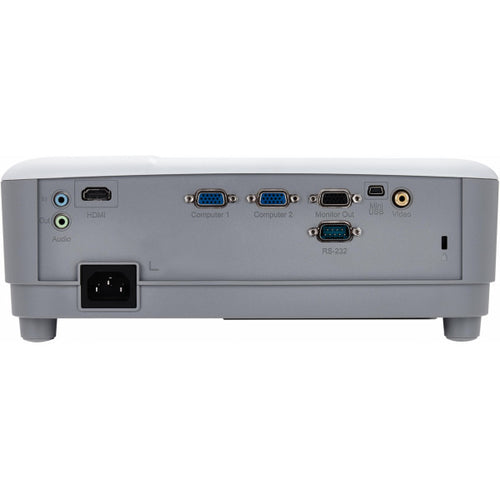

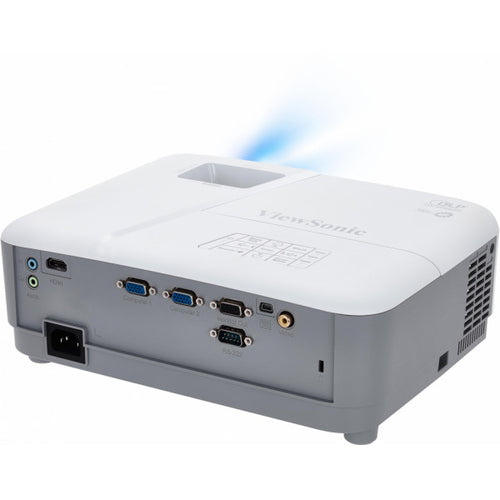

| HDMI connector type | Full-size |
|---|---|
| HDMI version | 1.4 |
| Mini-USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
General
| Smart TV | No |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
General
| Card reader integrated | No |
|---|
General
| Interactive | No |
|---|---|
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
| Noise level | 31 dB |
General
| Built-in speaker(s) | Yes |
|---|---|
| RMS rated power | 2 W |
General
| Market positioning | Presentation |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop, Ceiling |
General
| Built-in display | No |
|---|
General
| Power source | AC |
|---|---|
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|
General
| Width | 294 mm |
|---|---|
| Depth | 218 mm |
| Height | 110 mm |
| Weight | 2.22 kg |
| Package width | 365 mm |
| Package depth | 300 mm |
| Package height | 188 mm |
| Package weight | 3.24 kg |
General
| Remote control included | Yes |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
General
| Pallet gross length | 74 cm |
|---|---|
| Pallet gross width | 90 cm |
| Pallet gross height | 2.21 m |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
