Netgear

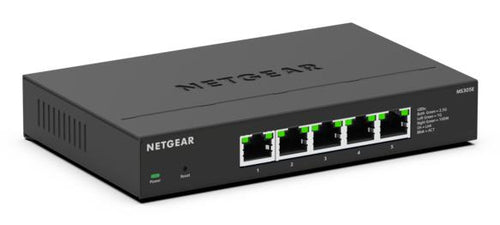

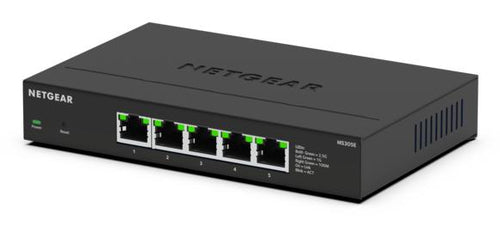

NETGEAR MS305E Unmanaged 2.5G Ethernet (100/1000/2500) Black
NETGEAR MS305E Unmanaged 2.5G Ethernet (100/1000/2500) Black
Regular price
$113.99 USD
Regular price
$244.91 USD
Sale price
$113.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
NETGEAR MS305E Unmanaged 2.5G Ethernet (100/1000/2500) Black
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Cable length detection | Yes |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 3.72 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 4.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
General
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Cable length detection | Yes |
General
| Switching capacity | 40 Gbit/s |
|---|---|
| Forwarding rate | 3.72 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 4.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet buffer memory | 1 MB |
General
| Rack mounting | No |
|---|---|
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
General
| Noise level | 0 dB |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 4273003 h |
General
| Power source | DC |
|---|---|
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (max) | 5.6 W |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Warranty period | 5 year(s) |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
General
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 450 g |
General
| Compliance certificates | CCC, Low Voltage Directive (LVD) |
|---|
