Msi Computer

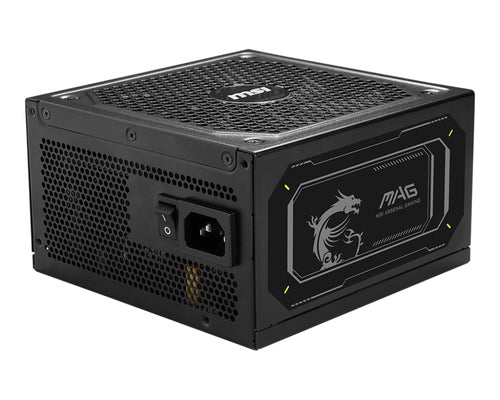

MSI MAG A1000GL PCIE5 II power supply unit 1000 W 24-pin ATX ATX Black
MSI MAG A1000GL PCIE5 II power supply unit 1000 W 24-pin ATX ATX Black
Regular price
$148.52 USD
Regular price
$149.99 USD
Sale price
$148.52 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
MSI MAG A1000GL PCIE5 II power supply unit 1000 W 24-pin ATX ATX Black
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Total power | 1000 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
General
| Motherboard power connector | 24-pin ATX |
|---|---|
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 450,500 mm |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| Cabling type | Fully-Modular |
General
| 80 PLUS certification | 80 PLUS Gold |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
General
| Product colour | Black |
|---|---|
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 500 - 1800 RPM |
| Illumination | No |
| On/off switch | Yes |
General
| Width | 150 mm |
|---|---|
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 169 g |
