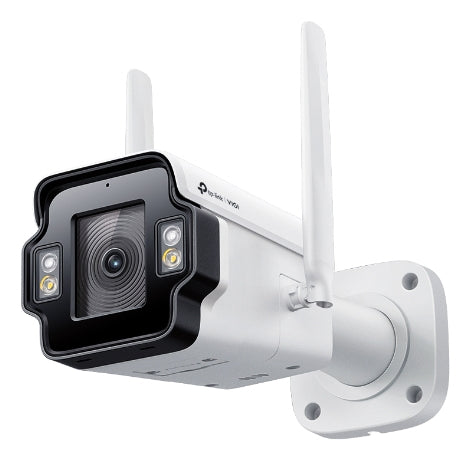

TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
Regular price
$366.95 USD
Regular price
$499.00 USD
Sale price
$366.95 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 80 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Antenna type | External |
| Antennas quantity | 2 |
| Dynamic range | 120 dB |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 80 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Antenna type | External |
| Antennas quantity | 2 |
| Dynamic range | 120 dB |
General
| Form factor | Bullet |
|---|---|
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
General
| Minimum illumination | 0 lx |
|---|---|
| Lens viewing angle, horizontal | 80.4° |
| Lens viewing angle, vertical | 41.8° |
| Lens viewing angle, diagonal | 98.7° |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 to 1/10000 |
General
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
|---|---|
| Progressive scan | Yes |
| Sensor type | CMOS |
General
| Detect distance | 80 m |
|---|---|
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Identify distance | 8 m |
| Fixed focal length | 4 mm |
General
| Night vision | Yes |
|---|---|
| LED type | IR/White |
General
| Maximum resolution | 2688 x 1520 pixels |
|---|---|
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video recording | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
General
| Built-in speaker(s) | Yes |
|---|---|
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
General
| Ethernet LAN | Yes |
|---|---|
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Wi-Fi | No |
| Bluetooth | No |

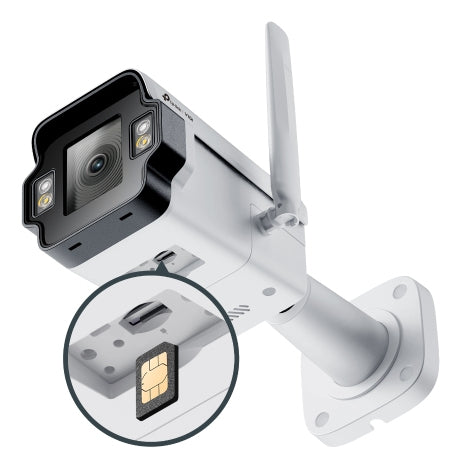

| SIM card slot | Yes |
| SIM card type | NanoSIM |
| Mobile network generation | 4G |
| 4G standard | LTE-TDD & LTE-FDD |
| Live view | Yes |
General
| Compatible memory cards | MicroSD (TransFlash) |
|---|---|
| Maximum memory card size | 512 GB |
General

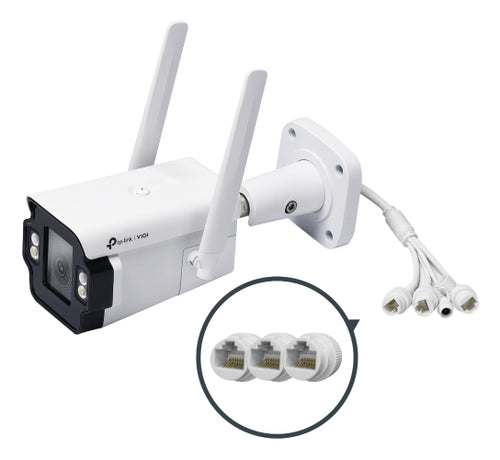

| Ethernet LAN (RJ-45) ports | 3 |
|---|---|
| DC-in jack | Yes |
General
| Built-in siren | Yes |
|---|---|
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Detection distance | 120 m |
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Mirror | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
General
| Web-based management | Yes |
|---|---|
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
General
| Power source type | DC |
|---|---|
| Power consumption (max) | 9.7 W |
| Power consumption (Power over Ethernet (PoE)) | 10.7 W |
| DC output voltage | 12 |
General
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
General
| Width | 122 mm |
|---|---|
| Height | 101 mm |
| Length | 256 mm |
| Weight | 1.09 kg |
General
| Number of cameras | 1 |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
| Drilling template included | Yes |
| Manual | Yes |
