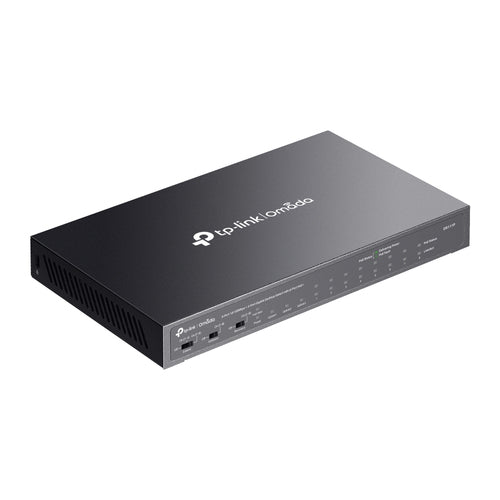

TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Regular price
$81.99 USD
Regular price
Sale price
$81.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |

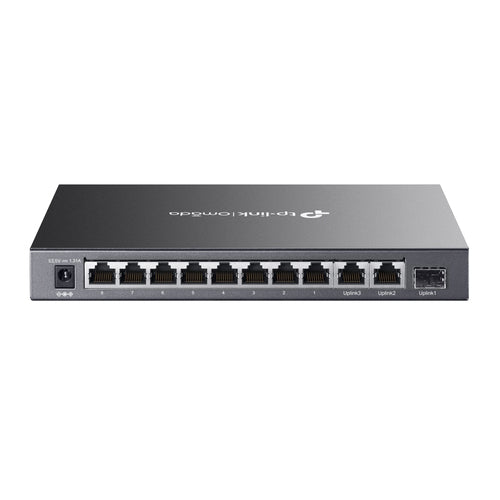

| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Switching capacity | 7.6 Gbit/s |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 10 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
General
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
General
| Switching capacity | 7.6 Gbit/s |
|---|---|
| Forwarding rate | 5.6544 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16 |
General
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |

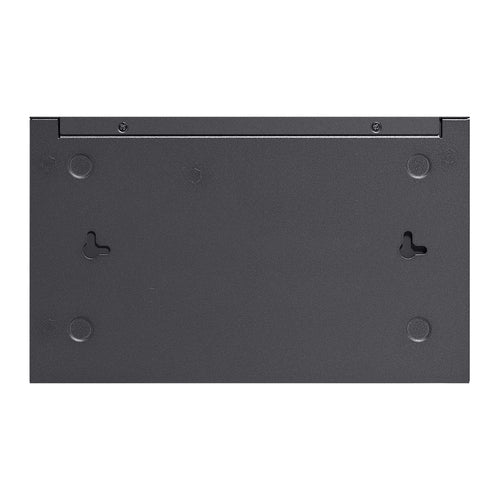

| Wall mountable | Yes |
General
| Fanless | Yes |
|---|
General
| Power source | DC |
|---|---|
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 77.32 W |
General
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 263.7 BTU/h |
General
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
General
| Cables included | Power |
|---|---|
| User guide | Yes |
General
| Rubber feet | Yes |
|---|
General
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
|---|
