Tp-link Usa Corporation

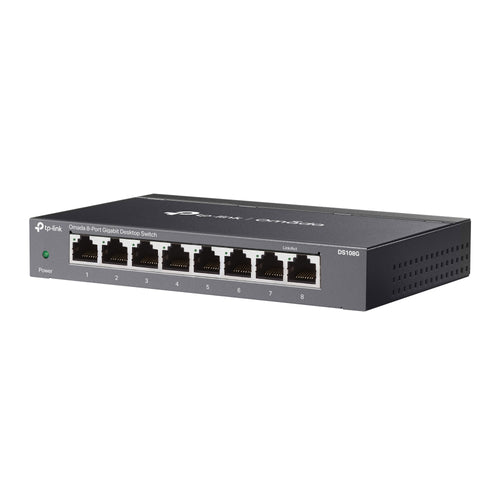

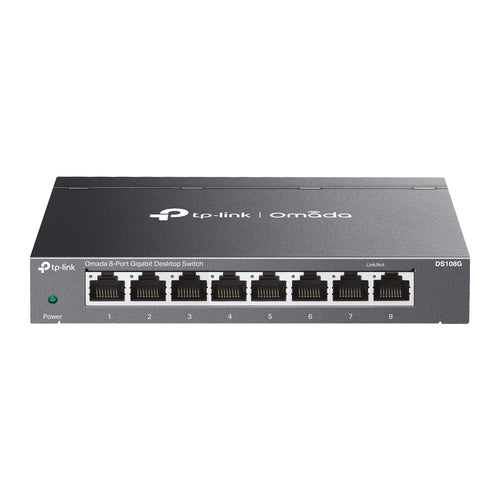

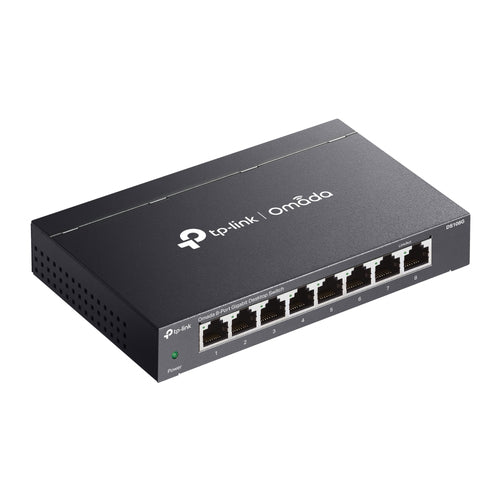

TP-Link Omada DS108G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

TP-Link Omada DS108G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Regular price $26.99 USD
Regular price Sale price $26.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

TP-Link Omada DS108G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Switch type Unmanaged
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto-negotiation Yes
Switching capacity 16 Gbit/s
Forwarding rate 11.9 Mpps
MAC address table 4000 entries
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 16

Shipping & Returns

In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.

Specifications

General

Switch type Unmanaged
Quality of Service (QoS) support Yes

General

Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack

General

Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto-negotiation Yes

General

Switching capacity 16 Gbit/s
Forwarding rate 11.9 Mpps
MAC address table 4000 entries
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 16

General

IGMP snooping Yes
Loop protection Yes

General

Product colour Black
Housing material Metal
Reset button Yes
LED indicators Activity, Link, Power

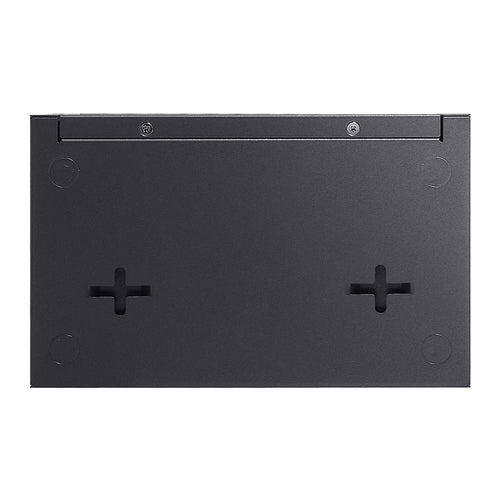

Wall mountable Yes

General

Fanless Yes

General

Power source DC
Power supply included Yes
DC input voltage 5 V
Input current 0.6 A
Power consumption (max) 3.92 W

General

Power over Ethernet (PoE) No

General

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 13.37 BTU/h

General

Width 158 mm
Depth 101 mm
Height 25 mm

General

Cables included Power
User guide Yes

General

Compliance certificates CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
