• D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP
  • D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP
1 2

D-link Systems

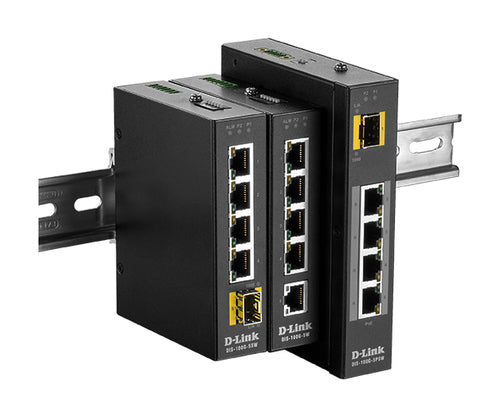

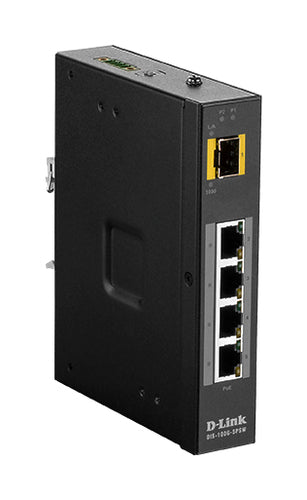

D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP

D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP

$315.73 USD
$429.99 USD $315.73 USD
Sale Sold out
Shipping calculated at checkout.

D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP

Switch type Unmanaged
Switch layer L2
Traffic shaping Yes
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 1
Fiber optic connector LC
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support No
Full duplex Yes
Flow control support Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Switching capacity 10 Gbit/s
Forwarding rate 7.44 Mpps
MAC address table 2000 entries
Store-and-forward Yes

Shipping & Returns

In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.

Specifications

General

Switch type Unmanaged
Switch layer L2
Traffic shaping Yes

General

Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 1
Fiber optic connector LC

General

Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support No
Full duplex Yes
Flow control support Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes

General

Switching capacity 10 Gbit/s
Forwarding rate 7.44 Mpps
MAC address table 2000 entries
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 9000

General

Multicast support Yes

General

Rack mounting No
Product colour Black
LED indicators LAN, PoE, Power
Wall mountable Yes
DIN rail mounting Yes
Electromagnetic compatibility FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)

General

DC input voltage 12 - 58 V
Power consumption (max) 120.2 W
Power protection features Over current, Reverse polarity

General

Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) voltage range 54 - 58 V
Total Power over Ethernet (PoE) budget 120 W

General

Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 0 - 95%
Heat dissipation 410.12 BTU/h

General

Width 139 mm
Depth 29 mm
Height 107 mm
Weight 375 g

General

Package width 181 mm
Package depth 210 mm
Package height 75 mm
Package weight 700 g

General

Shipping (inner) case height 24 cm
Shipping (inner) case width 38 cm
Shipping (inner) case length 39 cm
Shipping (inner) case net weight 7 kg
Products per shipping (inner) case 10 pc(s)
Pallet gross weight (air) 251.3 kg
Master (outer) cases per pallet (air) 30 pc(s)
Products per pallet (air) 300 pc(s)
Pallet gross length 120 cm
Pallet gross width 110 cm
Pallet height (air) 133.5 cm
Pallet gross weight (sea) 391.9 kg
Master (outer) cases per pallet (sea) 48 pc(s)
Products per pallet (sea) 480 pc(s)
Pallet height (sea) 2.06 m
Shipping (inner) case gross weight 7.81 kg

General

Certification IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE

General

Harmonized System (HS) code 85176990
