D-link Systems

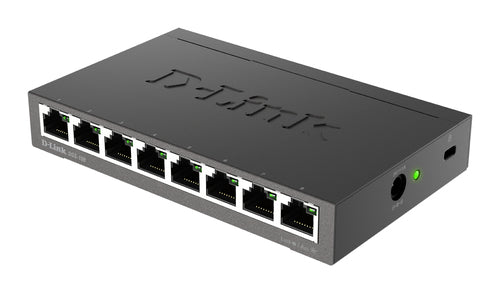

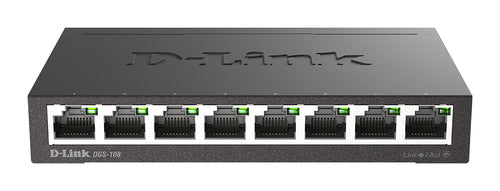

D-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black
D-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black
Regular price
$33.99 USD
Regular price
$35.99 USD
Sale price
$33.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
D-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

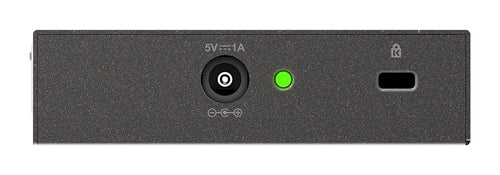

| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
General
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
General
| Supported data transfer rates | 10/100/1000 Mbps |
|---|---|
| Switching capacity | 16 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.192 MB |
General
| MAC address filtering | Yes |
|---|
General
| Rack mounting | No |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
General
| Mean time between failures (MTBF) | 1467882 h |
|---|
General
| Power source | AC |
|---|---|
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 5.12 W |
General
| Data transfer rate | 2000 Mbit/s |
|---|---|
| Dimensions (WxDxH) | 162 x 102 x 28 mm |
| Connectivity technology | Wired |
General
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 17.47 BTU/h |
General
| Width | 138.7 mm |
|---|---|
| Depth | 85 mm |
| Height | 22.4 mm |
| Weight | 270 g |
General
| Included power plug types | EU |
|---|
General
| Shipping (inner) case height | 44.3 cm |
|---|---|
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case net weight | 7.1 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 398.9 kg |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Products per pallet (air) | 480 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 196.7 cm |
| Pallet gross weight (sea) | 398.9 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Pallet height (sea) | 196.7 cm |
| Shipping (inner) case gross weight | 7.79 kg |
General
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
|---|
General
| Harmonized System (HS) code | 85176990 |
|---|
