D-link Systems

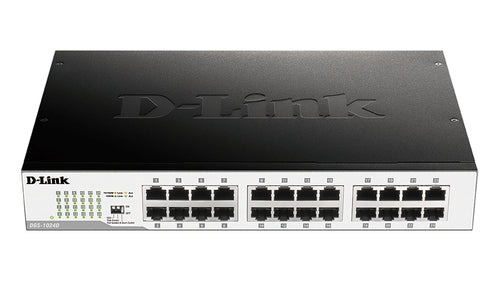

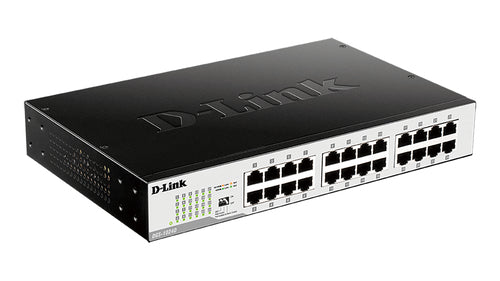

D-Link DGS-1024D network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black, Silver
D-Link DGS-1024D network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black, Silver
Regular price
$94.99 USD
Regular price
$103.99 USD
Sale price
$94.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
D-Link DGS-1024D network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black, Silver
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Active link detection | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.71 Mpps |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
General
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Active link detection | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
General
| Switching capacity | 48 Gbit/s |
|---|---|
| Forwarding rate | 35.71 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet buffer memory | 0.5 MB |
General
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Silver |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| Electromagnetic compatibility | ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC |
General
| Noise level | 0 dB |
|---|---|
| Mean time between failures (MTBF) | 863100 h |
General
| Power supply included | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.3 A |
| Power consumption (max) | 13.3 W |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 45.35 BTU/h |
General
| Width | 280 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.3 kg |
General
| Certification | cUL/UL CE LVD CCC CB BSMI |
|---|
