D-link Systems

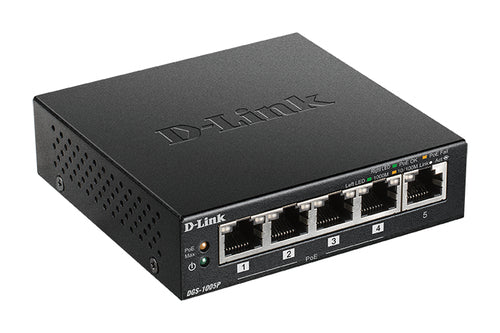

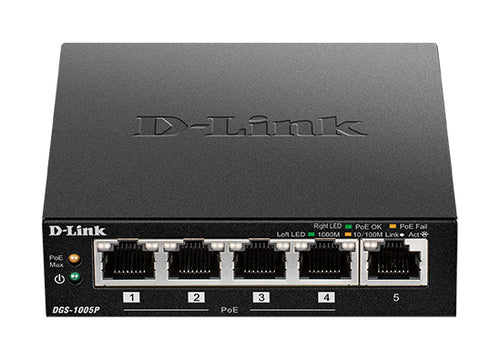

D-Link 5-Port Desktop Gigabit PoE+ Switch
D-Link 5-Port Desktop Gigabit PoE+ Switch
Regular price
$59.99 USD
Regular price
$64.99 USD
Sale price
$59.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
D-Link 5-Port Desktop Gigabit PoE+ Switch
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |

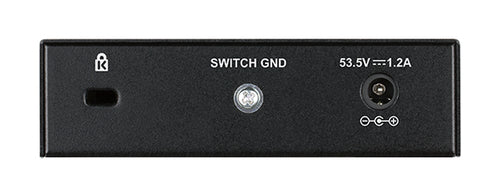

| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet filtering | 7.44 Mpps |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
General
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
General
| Switching capacity | 10 Gbit/s |
|---|---|
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
General
| Packet filtering | 7.44 Mpps |
|---|
General
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Wall mountable | Yes |
General
| Buffer size | 64 KB |
|---|---|
| Plug and Play | Yes |
General
| Power supply included | Yes |
|---|
General
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
General
| Width | 100 mm |
|---|---|
| Depth | 98 mm |
| Height | 28 mm |
| Weight | 260 g |
General
| Certification | CE, BSMI, FCC , VCCI, RCM, cUL, CB, LVD, BSMI |
|---|
General
| Harmonized System (HS) code | 85176990 |
|---|
