Tp-link Usa Corporation
TP-Link AXE5400 Whole Home Mesh Wi-Fi 6E Unit(Tri-Band)
TP-Link AXE5400 Whole Home Mesh Wi-Fi 6E Unit(Tri-Band)
Regular price
$219.99 USD
Regular price
Sale price
$219.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link AXE5400 Whole Home Mesh Wi-Fi 6E Unit(Tri-Band)
| Product type | Mesh router |
| Product colour | White |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |

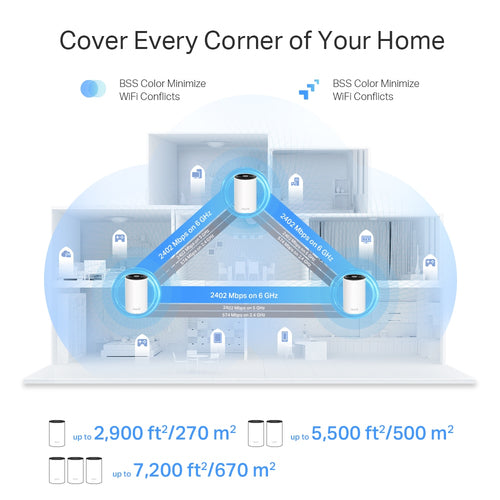

| Maximum coverage | 270 m² |
| Transmit power | FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz), CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz) |
| Reset button | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |

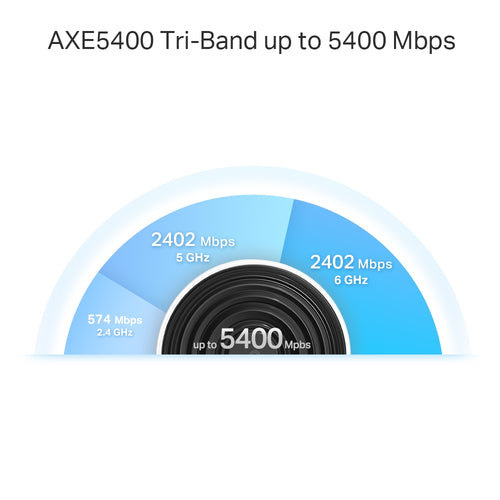

| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA, WPA2-PSK, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Product type | Mesh router |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Maximum coverage | 270 m² |
| Transmit power | FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz), CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz) |
| Reset button | Yes |
General
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA, WPA2-PSK, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | TP-Link Deco |
General
| Built-in processor | Yes |
|---|---|
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
| Parental control features | Bedtime, Content filter, Custom profiles, Family time, Pause the Internet, Time controls, Time rewards, Weekly/monthly reports |
| MU-MIMO technology | Yes |
| MIMO | Yes |
General
| Supported network protocols (IPv6) | Y |
|---|
General

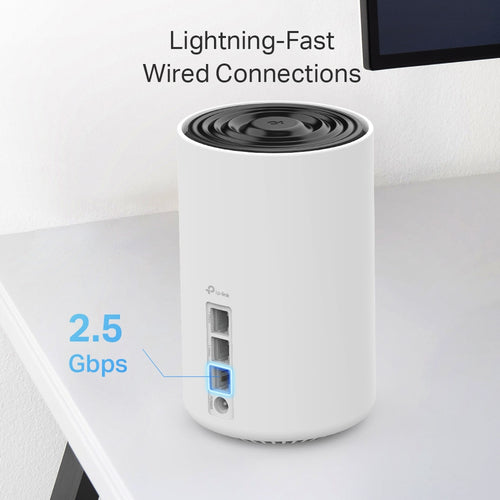

| Ethernet LAN (RJ-45) ports | 3 |
|---|---|
| Ethernet WAN | Yes |
| DC-in jack | Yes |
General
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
General
| Certification | CE, FCC, RoHS |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
General
| Width | 105 mm |
|---|---|
| Depth | 105 mm |
| Height | 169 mm |
General
| Number of products included | 1 pc(s) |
|---|---|
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
General
| Package width | 213.5 mm |
|---|---|
| Package depth | 241 mm |
| Package height | 124 mm |
| Package weight | 1.2 kg |
