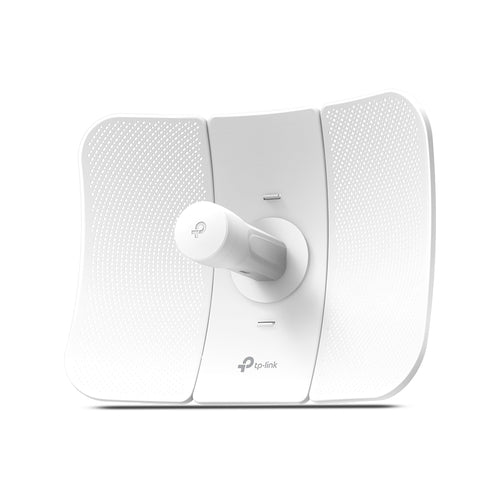

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Regular price
$70.99 USD
Regular price
Sale price
$70.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
| Frequency band | 5.15 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Gain | 23 dBi |
| Horizontal beam width | 9° |
| Vertical beam width | 7° |
| Built-in processor | Yes |
| Processor frequency | 750 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Antenna gain level (max) | 23 dBi |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | Directional antenna |
| Antenna connector type | PoE/LAN |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
| LED indicators | Power |
| Power source type | PoE |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Frequency band | 5.15 - 5.85 GHz |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Gain | 23 dBi |
| Horizontal beam width | 9° |
| Vertical beam width | 7° |
| Built-in processor | Yes |
| Processor frequency | 750 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Antenna gain level (max) | 23 dBi |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
General
| Antenna type | Directional antenna |
|---|---|
| Antenna connector type | PoE/LAN |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
| LED indicators | Power |
General
| Power source type | PoE |
|---|---|
| Input voltage | 24 V |
General
| Certification | CE, FCC, RoHS, IC |
|---|
General
| Operating temperature (T-T) | -40 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
General
| Width | 366 mm |
|---|---|
| Depth | 280 mm |
| Height | 207 mm |
General
| Package type | Box |
|---|
General
| Cables included | AC |
|---|
General
| Export Control Classification Number (ECCN) | EAR99 |
|---|---|
| Harmonized System (HS) code | 85176990 |
