Viewsonic

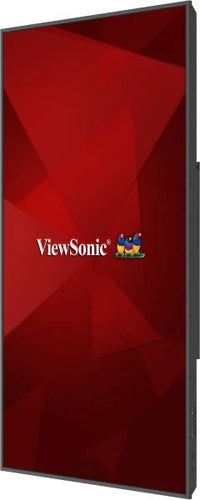

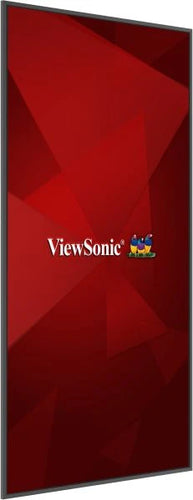

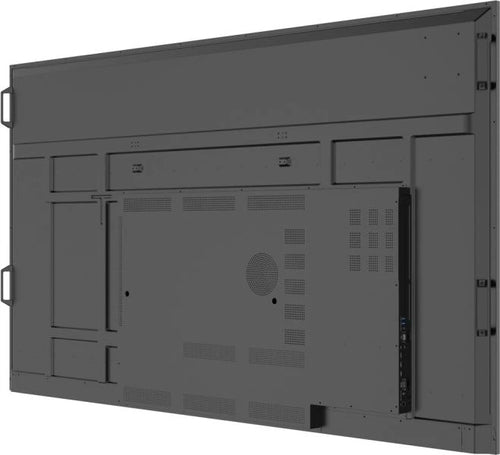

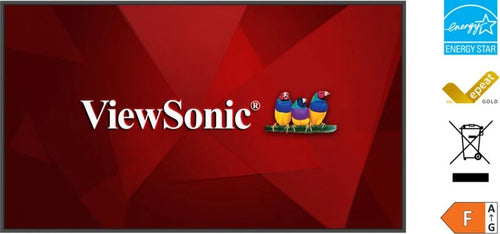

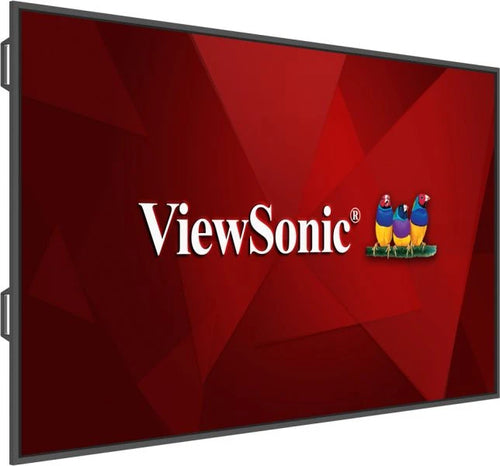

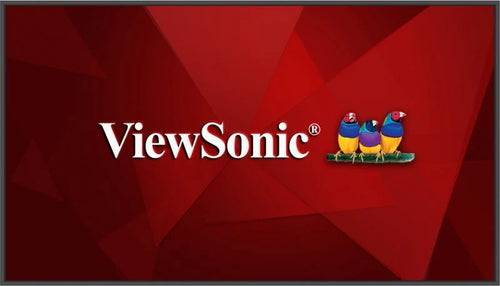

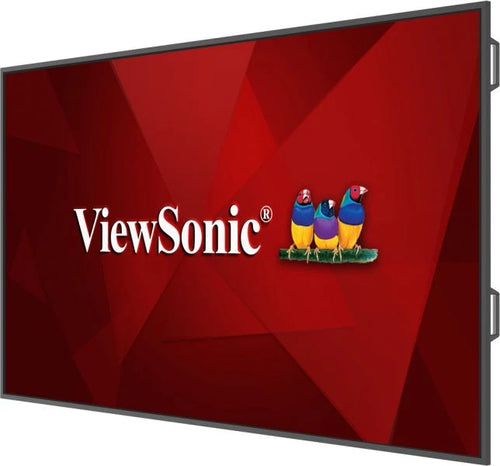

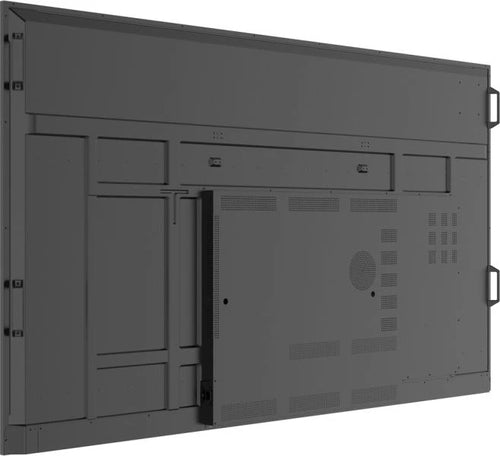

Viewsonic CDEG3 Series 86“ 4K OS-Free Commercial Display
Viewsonic CDEG3 Series 86“ 4K OS-Free Commercial Display
Regular price
$3,879.99 USD
Regular price
$4,309.00 USD
Sale price
$3,879.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Viewsonic CDEG3 Series 86“ 4K OS-Free Commercial Display
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Display diagonal (metric) | 218 cm |
| Panel life | 50000 h |
| Supported video modes | 480i, 480p, 720p, 1080i, 1080p, 2160p |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Panel type | VA |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Display diagonal (metric) | 218 cm |
| Panel life | 50000 h |
| Supported video modes | 480i, 480p, 720p, 1080i, 1080p, 2160p |
| Colour depth | 8 bit |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Surface hardness | 3H |
General
| HDMI ports quantity | 3 |
|---|---|
| HDMI version | 2.1 |
| HDMI input ports quantity | 3 |
| Consumer Electronics Control (CEC) | Yes |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 3 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-C |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PC Audio in | Yes |
| RS-232 interface | Yes |
| PC Audio out | Yes |
| Audio Return Channel (ARC) | Yes |
General
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
General
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.59 cm |
| Bezel width (side) | 1.59 cm |
| Bezel width (top) | 1.59 cm |
| Anti-glare screen | Yes |
General
| Purpose | Commercial |
|---|---|
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
General
| Power consumption (typical) | 119.6 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 179.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
General
| Built-in processor | Yes |
|---|---|
| Processor manufacturer | MediaTek |
| Processor model | MTK3683 |
General
| Display width | 1933.8 mm |
|---|---|
| Display depth | 79.7 mm |
| Display height | 1103.8 mm |
| Display weight | 39.5 kg |
General
| Package width | 2095 mm |
|---|---|
| Package depth | 185 mm |
| Package height | 1220 mm |
| Package weight | 53.8 kg |
General
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Mounting kit | Yes |
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3000 m |
General
| Ethernet LAN | Yes |
|---|
General
| Sustainability certificates | ENERGY STAR, Mexico Energy |
|---|---|
| Warranty period | 3 year(s) |
| Compliance certificates | Federal Communications Commission (FCC), cTUVus, RoHS |
General
| Headphone connectivity | 3.5 mm |
|---|---|
| Screws included | Yes |
