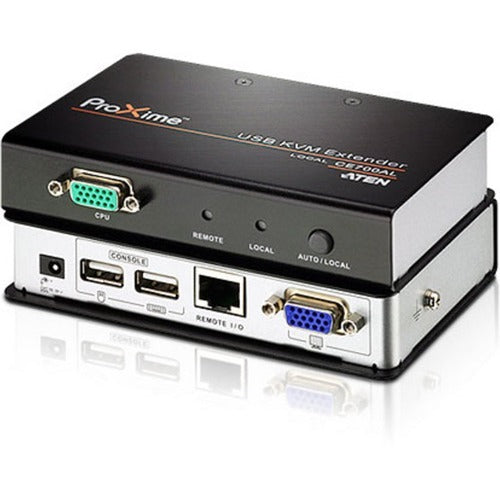

ATEN Proxime CE700A KVM Console/Extender

ATEN Proxime CE700A KVM Console/Extender

The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.

More from the Manufacturer

• High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)


• Automatic gain control - adjusts signal strength to compensate for distance


• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection


• Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.


• USB Keyboard and USB Mouse Ports


• USB overcurrent detection and prevention


• Auto Signal Compensation (ASC)


• Built-in ASIC for greater reliability and compatibility


• Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles


• Cat 5e cable connects the Local and Remote Units - up to 150m apart
