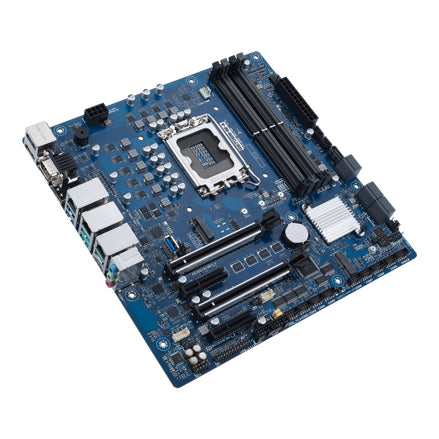

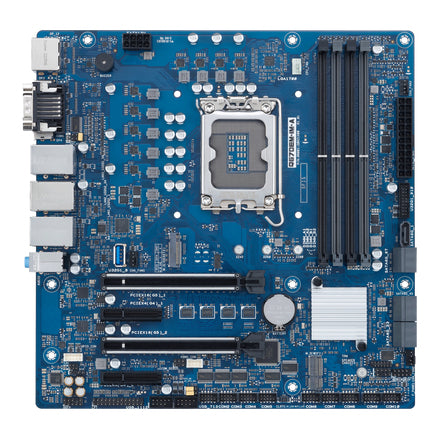

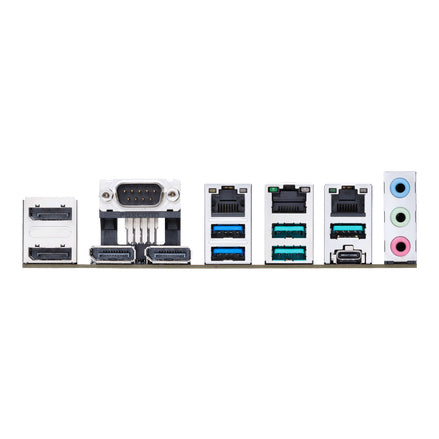

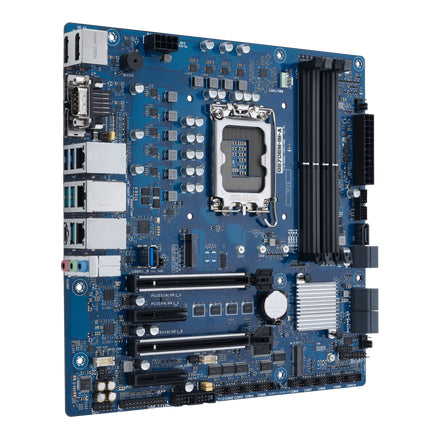

ASUS Q670EM-IM-A Intel Q670E LGA 1700 micro ATX
ASUS Q670EM-IM-A Intel Q670E LGA 1700 micro ATX
Regular price
$280.97 USD
Regular price
Sale price
$280.97 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
ASUS Q670EM-IM-A Intel Q670E LGA 1700 micro ATX
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 4400 MHz |
| Supported memory clock speed (max) | 4400 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 7 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 7 |
| Front panel audio connector | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
General
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Supported memory clock speeds | 4400 MHz |
| Supported memory clock speed (max) | 4400 MHz |
| Maximum internal memory | 128 GB |
General
| Supported storage drive interfaces | M.2, SATA III |
|---|---|
| Number of HDDs supported | 7 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
General
| Parallel processing technology support | Not supported |
|---|
General
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 7 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 9 |
| TPM connector | Yes |
| 12V power connector | Yes |
General
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Serial ports quantity | 1 |
General
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
General
| Motherboard chipset | Intel Q670E |
|---|---|
| Audio chip | Realtek ALC897 |
| Product colour | Blue |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 IoT Enterprise |
| Certification | CE, FCC, BSMI, VCCI, RCM |
General
| PCI Express x4 (Gen 4.x) slots | 2 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
General
| Clear CMOS jumper | Yes |
|---|
General
| Storage temperature (T-T) | -40 - 85 °C |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 95% |
General
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
