Intellinet
Intellinet 5 Port Switch 4 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Intellinet 5 Port Switch 4 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
Regular price
$102.99 USD
Regular price
$112.99 USD
Sale price
$102.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet 5 Port Switch 4 x 2.5G Ethernet-Ports and 1 SFP+ Uplink
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 4 |
| SFP+ module slots quantity | 1 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|
General
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 4 |
| SFP+ module slots quantity | 1 |
| Power connector | DC-in jack |
General
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
General
| Switching capacity | 40 Gbit/s |
|---|---|
| Forwarding rate | 29.76 Mpps |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 8.1 MB |
General
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
General
| Fanless | Yes |
|---|
General
| Power source | DC |
|---|---|

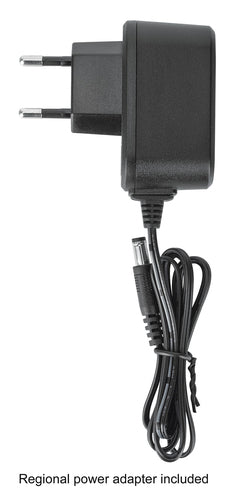

| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 12 W |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Warranty period | 3 year(s) |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
General
| Width | 162 mm |
|---|---|
| Depth | 102 mm |
| Height | 28 mm |
| Weight | 400 g |
General
| Cables included | AC |
|---|---|
| Manual | Yes |
General
| Package type | Box |
|---|---|
| Package width | 153 mm |
| Package depth | 179 mm |
| Package height | 68 mm |
| Package weight | 600 g |
General
| Compliance certificates | CE, RoHS |
|---|---|
| Certification | FCC, CE, RoHS, UKCA |
General
| Master (outer) case width | 360 mm |
|---|---|
| Master (outer) case length | 375 mm |
| Master (outer) case height | 328 mm |
| Master (outer) case gross weight | 13.2 kg |
| Products per master (outer) case | 20 pc(s) |
