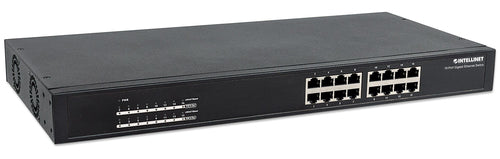

Intellinet 16-Port Gigabit Ethernet PoE+ Switch, 16 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Rackmount
Intellinet 16-Port Gigabit Ethernet PoE+ Switch, 16 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Rackmount
Regular price
$265.99 USD
Regular price
$293.99 USD
Sale price
$265.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet 16-Port Gigabit Ethernet PoE+ Switch, 16 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Rackmount
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Rack mounting | Yes |
| Form factor | 1U |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
General
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
General
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
General
| Switching capacity | 32 Gbit/s |
|---|---|
| Forwarding rate | 1.488 Mpps |
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
General
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
General
| Buffer size | 256 KB |
|---|
General
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 260 W |
| Power protection features | Over voltage, Overload, Short circuit |
General
| Power over Ethernet (PoE) | Yes |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
General
| Width | 442 mm |
|---|---|
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 3.8 kg |
General
| Cables included | AC |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
General
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
|---|---|
| Certification | FCC Class B, VCCI Class A, CE, RoHS |
General
| Harmonized System (HS) code | 85176990 |
|---|
