Intellinet

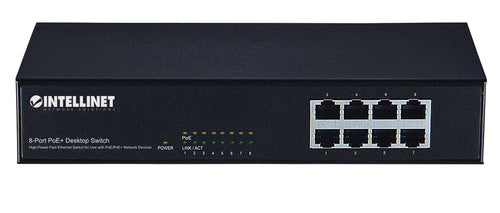

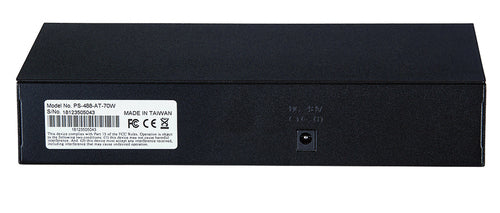

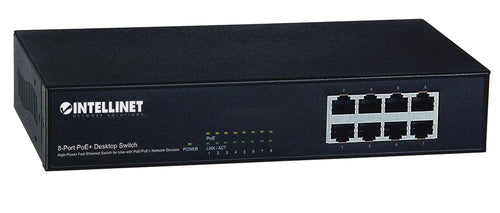

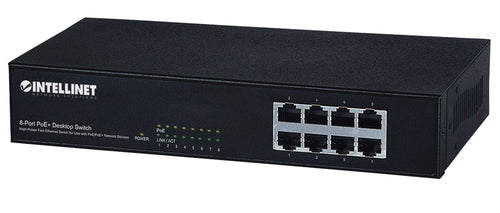

Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box
Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box
Regular price
$68.99 USD
Regular price
$84.99 USD
Sale price
$68.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 0.1488 Mpps |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
General
| Networking standards | IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
General
| Switching capacity | 1.6 Gbit/s |
|---|---|
| Forwarding rate | 0.1488 Mpps |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
General
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
General
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 150 W |
General
| Power over Ethernet (PoE) | Yes |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
General
| Width | 280 mm |
|---|---|
| Depth | 179 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
General
| Cables included | AC |
|---|---|
| Manual | Yes |
General
| Certification | FCC Class A, CE |
|---|
General
| Harmonized System (HS) code | 85176990 |
|---|
