Koamtac, Inc.

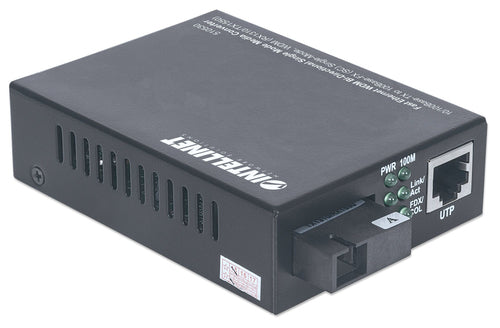

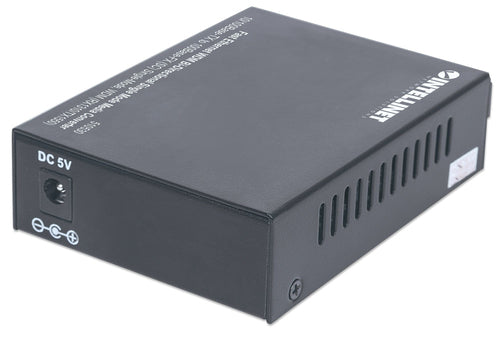

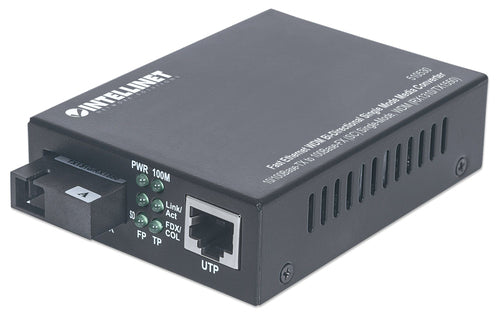

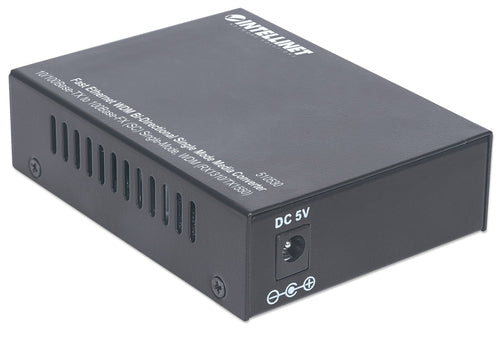

Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1310/Tx1550)
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1310/Tx1550)
Regular price
$36.99 USD
Regular price
$899.00 USD
Sale price
$36.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1310/Tx1550)
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Duplex system | Full |
| Cable types supported | Cat5e |
| Maximum transfer distance | 20000 m |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -15 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -32 dBmW |
| Mean time between failures (MTBF) | 100000 h |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Duplex system | Full |
| Cable types supported | Cat5e |
General
| Maximum transfer distance | 20000 m |
|---|---|
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -15 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -32 dBmW |
| Mean time between failures (MTBF) | 100000 h |
General
| Internal | No |
|---|---|

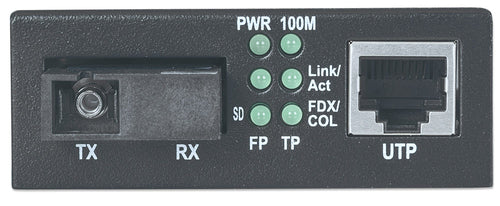

| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
General
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

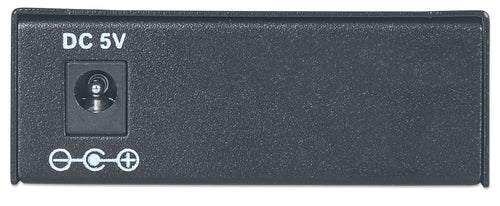

| DC-in jack | Yes |
General
| Output current | 1.2 A |
|---|---|
| Power consumption (max) | 2.5 W |
| External power adapter | Yes |
General
| Width | 69 mm |
|---|---|
| Depth | 105 mm |
| Height | 25 mm |
| Weight | 180 g |
General
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
General
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
General
| Certification | FCC Class A, CE |
|---|
General
| Harmonized System (HS) code | 85176990 |
|---|
