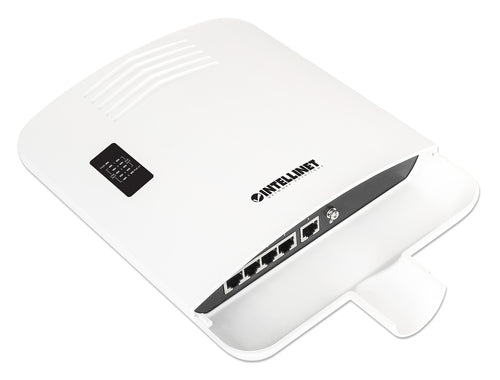

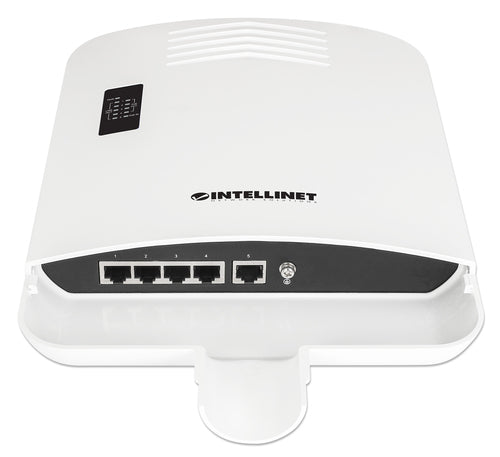

Intellinet Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender
Intellinet Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender
Regular price
$116.99 USD
Regular price
$127.99 USD
Sale price
$116.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat8.1 |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 2 MB |
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Housing material | Plastic |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
General
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Cable types supported | Cat5e, Cat6, Cat6a, Cat8.1 |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
General
| Switching capacity | 10 Gbit/s |
|---|---|
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 2 MB |
General
| Rack mounting | No |
|---|---|
| Stackable | No |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Link, PoE, Power |

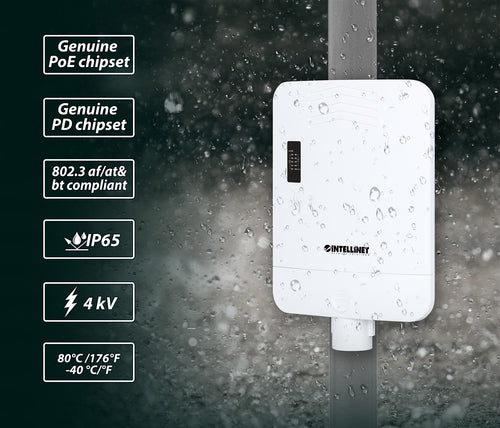

| International Protection (IP) code | IP65 |
General
| Mean time between failures (MTBF) | 50000 h |
|---|
General
| Power source | PoE |
|---|
General
| Power over Ethernet (PoE) | Yes |
|---|---|
| Total Power over Ethernet (PoE) budget | 85 W |
General
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
General
| Width | 206 mm |
|---|---|
| Depth | 299 mm |
| Height | 65 mm |
| Weight | 1 kg |
General
| Manual | Yes |
|---|
General
| Package width | 310 mm |
|---|---|
| Package depth | 350 mm |
| Package height | 90 mm |
| Package weight | 1.3 kg |
General
| Compliance certificates | CE, RoHS |
|---|---|
| Certification | FCC, CE, RoHS, UKCA, NDAA |
General
| Master (outer) case width | 365 mm |
|---|---|
| Master (outer) case length | 565 mm |
| Master (outer) case height | 335 mm |
| Master (outer) case gross weight | 6.93 kg |
| Products per master (outer) case | 6 pc(s) |
