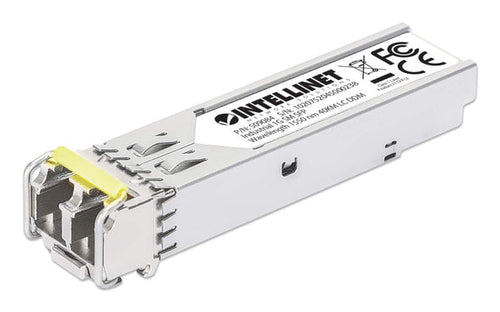

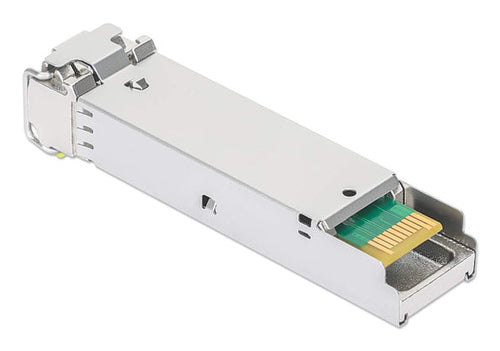

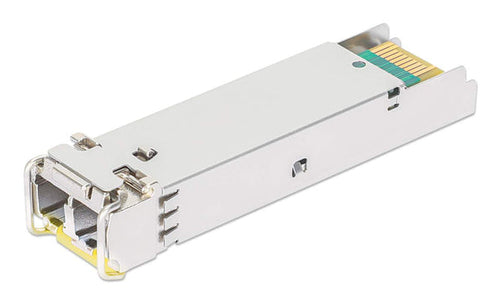

Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
Regular price
$102.99 USD
Regular price
$112.99 USD
Sale price
$102.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LX |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 19 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Form factor | SFP |
| Plug and Play | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LX |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 19 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
General
| Product colour | Silver |
|---|---|
| Housing material | Metal |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
| Compatible products | Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more |
General
| Input voltage | 3.3 V |
|---|---|
| Power consumption (typical) | 1 W |
General
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA |
|---|
General
| Doesn't contain | Cadmium, Lead, Mercury |
|---|
General
| Operating temperature (T-T) | -40 - 85 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
General
| Width | 14 mm |
|---|---|
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
General
| Quantity per pack | 1 pc(s) |
|---|
General
| Package weight | 30 g |
|---|
General
| RX sensitivity | -24 dB |
|---|
