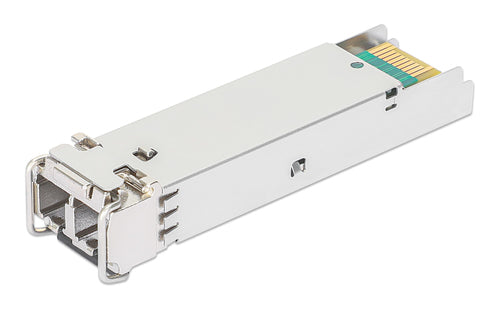

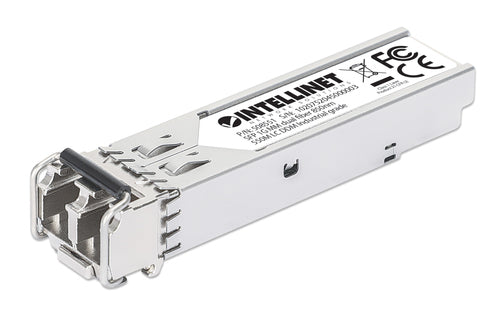

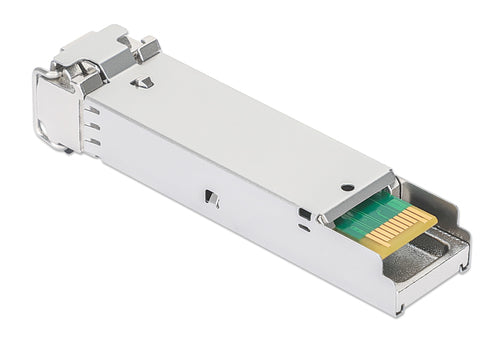

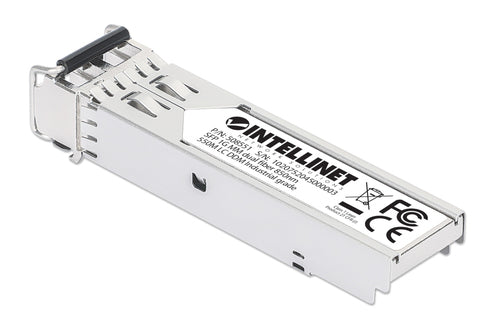

Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-SX (LC) Multi-Mode Port, 550 m, MSA-compliant for Maximum Compatibility, Silver
Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-SX (LC) Multi-Mode Port, 550 m, MSA-compliant for Maximum Compatibility, Silver
Regular price
$40.99 USD
Regular price
$43.99 USD
Sale price
$40.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-SX (LC) Multi-Mode Port, 550 m, MSA-compliant for Maximum Compatibility, Silver
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 9 dB |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |

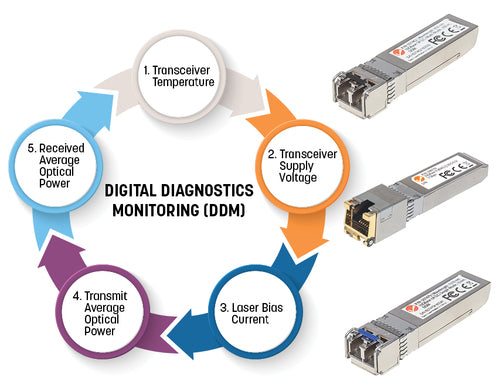

| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
| Housing material | Metal |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 9 dB |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
General
| Product colour | Silver |
|---|---|
| Housing material | Metal |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
General
| Maximum voltage | 3.3 V |
|---|---|
| Power consumption (typical) | 1 W |
General
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA |
|---|
General
| Sustainability compliance | Yes |
|---|
General
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
General
| Width | 14 mm |
|---|---|
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
General
| Quantity per pack | 1 pc(s) |
|---|
General
| Package width | 56 mm |
|---|---|
| Package depth | 120 mm |
| Package height | 24 mm |
| Package weight | 50 g |
| Package type | Box |
General
| Master (outer) case width | 200 mm |
|---|---|
| Master (outer) case length | 310 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 2.6 kg |
| Products per master (outer) case | 48 pc(s) |
