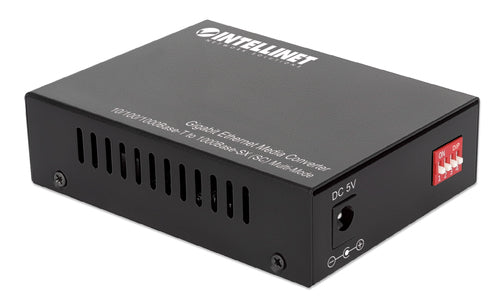

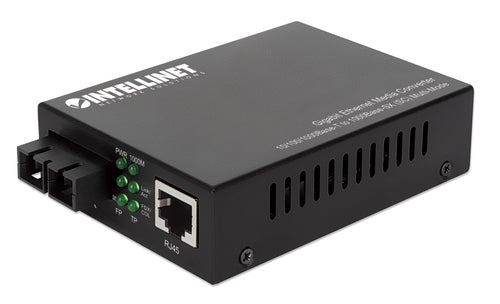

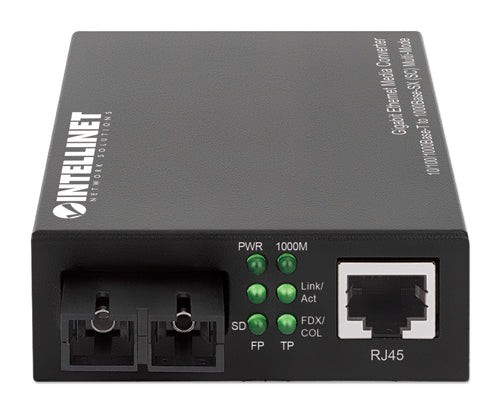

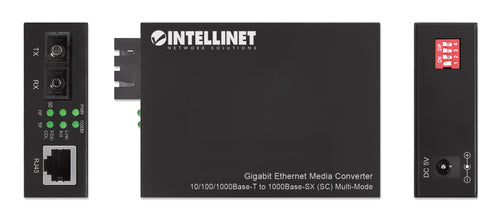

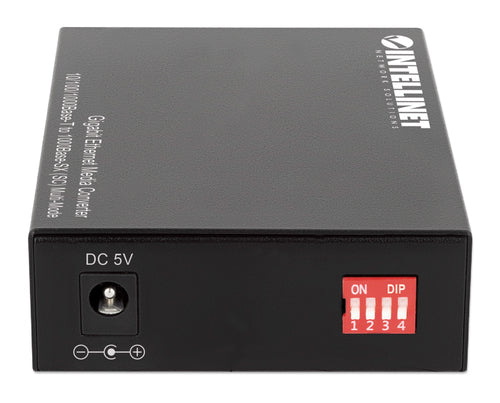

Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.), Autonegotiation
Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.), Autonegotiation
Regular price
$70.99 USD
Regular price
$76.99 USD
Sale price
$70.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.), Autonegotiation
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9.2 |
| VLAN support | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5e |
| Supported network protocols | UTP/STP |
| Link Fault Pass-through (LFP) | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9.2 |
| VLAN support | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5e |
| Supported network protocols | UTP/STP |
| Link Fault Pass-through (LFP) | Yes |
| Quality of Service (QoS) support | Yes |
General
| Maximum transfer distance | 550 m |
|---|---|
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
General
| Internal | No |
|---|---|
| LED indicators | LAN, Link, Power, Signal strength |
| Housing material | Metal |
General
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
General
| External power adapter | Yes |
|---|
General
| Width | 94 mm |
|---|---|
| Depth | 70 mm |
| Height | 26 mm |
General
| Operating temperature (T-T) | -10 - 55 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
General
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
General
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
|---|
General
| Warranty period | 3 year(s) |
|---|
