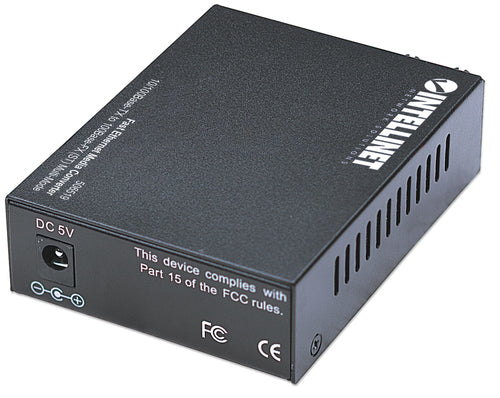

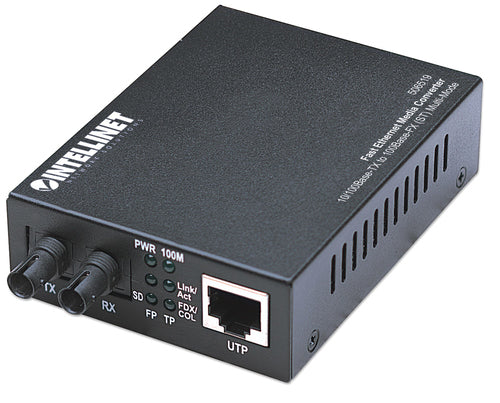

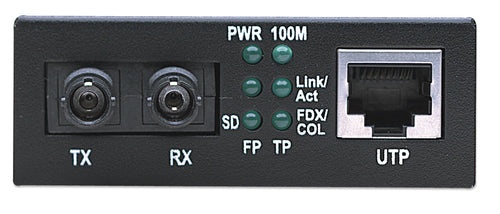

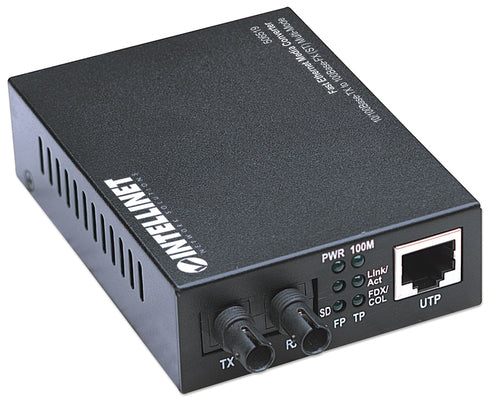

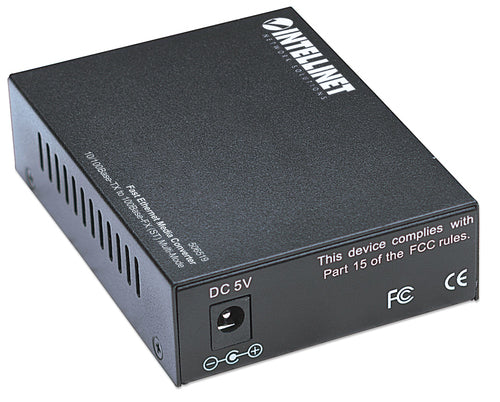

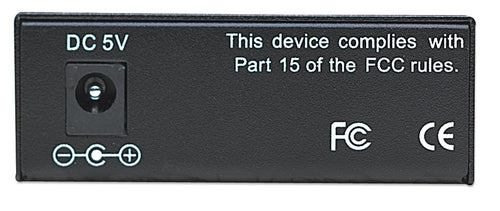

Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
Regular price
$58.99 USD
Regular price
$66.99 USD
Sale price
$58.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -22 dBmW |
| Tx power (max) | -12 dBmW |
| Sensitivity | -30 dBmW |
| Internal | No |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
| Housing material | Metal |
| Connectivity technology | Wired |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Duplex system | Full, Half |
General
| Maximum transfer distance | 2000 m |
|---|---|
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -22 dBmW |
| Tx power (max) | -12 dBmW |
| Sensitivity | -30 dBmW |
General
| Internal | No |
|---|---|
| LED indicators | LAN, Link, Power |
| Product colour | Black |
| Housing material | Metal |
General
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| DC-in jack | Yes |
General
| Input current | 1 A |
|---|---|
| Output voltage | 5 V |
| Power consumption (max) | 2.5 W |
| External power adapter | Yes |
General
| Width | 70 mm |
|---|---|
| Depth | 107 mm |
| Height | 26 mm |
| Weight | 500 g |
General
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
General
| Manual | Yes |
|---|
General
| Certification | FCC, CE |
|---|
General
| Harmonized System (HS) code | 85176990 |
|---|
