Apc By Schneider Electric

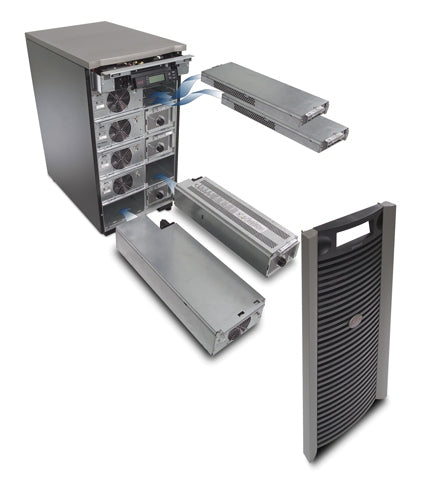

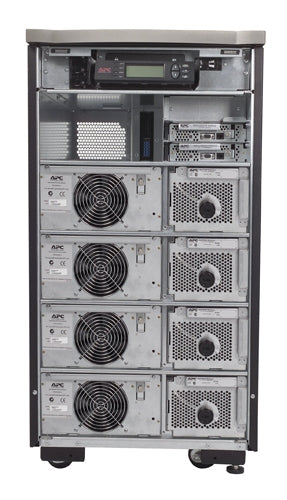

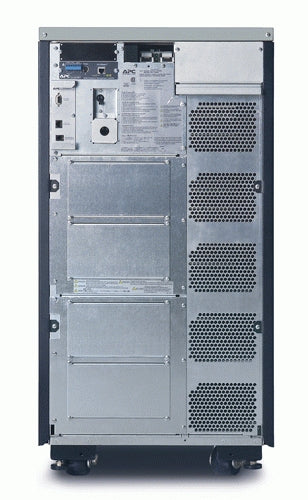

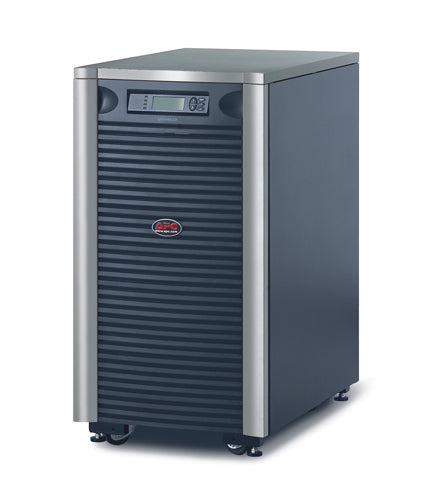

APC SYMMETRA LX 16kVA N+1 Rack-mount Frame, 220/230/240V OR 380/400/415V
APC SYMMETRA LX 16kVA N+1 Rack-mount Frame, 220/230/240V OR 380/400/415V
Normalpris
$7,661.02 USD
Normalpris
$11,325.00 USD
Udsalgspris
$7,661.02 USD
Levering beregnes ved betaling.
Antal
Tilgængelighed for afhentning kunne ikke indlæses
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Output power capacity | 16 kVA |
|---|---|
| Output power | 11200 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 62 dB |
General
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.3 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
General
| Certification | C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 A,EN 55024,EN 60950,GOST,IEC 60950,VDE |
|---|
General
| Weight | 307.7 kg |
|---|
General
| Package weight | 337.7 kg |
|---|
General
| Harmonized System (HS) code | 85078000 |
|---|---|
| Total carbon footprint (kg of CO2e) | 365.48 |
General

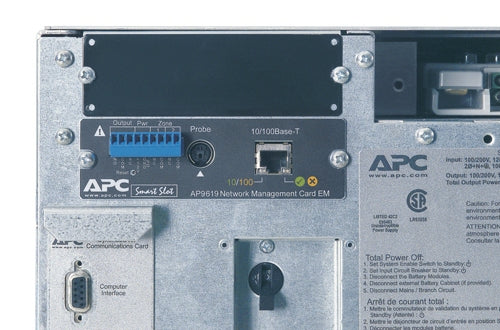

| Interface | DB-9, RS-232 |
|---|---|
| Output connections | 1xHard Wire 3-wire (H N + G) |
| Input connection type | (1PH+N+G)/(3PH + N + G) |
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
| Nominal output voltage | 230 V |
| Output voltage note | 220-230/240 V |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
