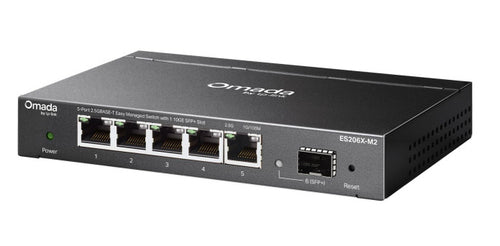

TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
Normalpris
$58.99 USD
Normalpris
Udsalgspris
$58.99 USD
Levering beregnes ved betaling.
Antal
Tilgængelighed for afhentning kunne ikke indlæses
TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 1 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Switching capacity | 45 Gbit/s |
| Forwarding rate | 33.48 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 1 |
General
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
General
| Switching capacity | 45 Gbit/s |
|---|---|
| Forwarding rate | 33.48 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
| Packet buffer memory | 0.64 MB |
General
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
General
| Form factor | Desktop/Wall-Mounting |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
General
| Flash memory | 64 MB |
|---|---|
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 1223587 h |
General
| Power source | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 5.63 W |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 19.21 BTU/h |
General
| Width | 158 mm |
|---|---|
| Depth | 100.7 mm |
| Height | 25.4 mm |
| Weight | 520 g |
General
| Certification | CE, FCC, RoHS |
|---|
