Tp-link Usa Corporation

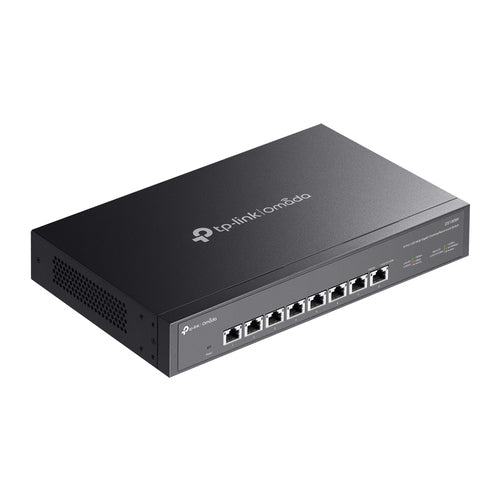

TP-Link Omada DS1008X network switch Unmanaged 10G Ethernet (100/1000/10000) 1U Black
TP-Link Omada DS1008X network switch Unmanaged 10G Ethernet (100/1000/10000) 1U Black
Normalpris
$383.99 USD
Normalpris
Udsalgspris
$383.99 USD
Levering beregnes ved betaling.
Antal
Tilgængelighed for afhentning kunne ikke indlæses
TP-Link Omada DS1008X network switch Unmanaged 10G Ethernet (100/1000/10000) 1U Black
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Auto-negotiation | Yes |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119.04 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
General
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
General
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Auto-negotiation | Yes |
General
| Switching capacity | 160 Gbit/s |
|---|---|
| Forwarding rate | 119.04 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 12 MB |
General
| IGMP snooping | Yes |
|---|
General
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Number of fans | 1 fan(s) |
General
| Plug and Play | Yes |
|---|
General
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.8 A |
| Power consumption (max) | 31.2 W |
General
| Power over Ethernet (PoE) | No |
|---|
General
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
General
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
General
| Cables included | Power |
|---|---|
| User guide | Yes |
| Rack mount kit | Yes |
General
| Rubber feet | Yes |
|---|
General
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
|---|
