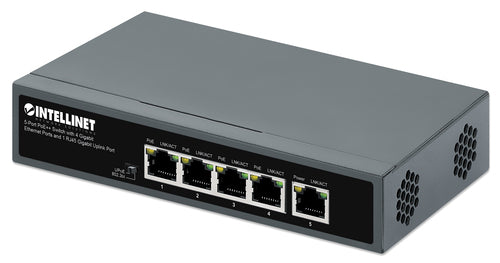

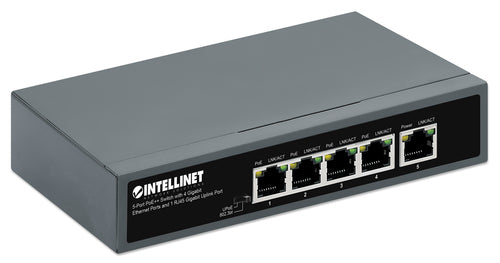

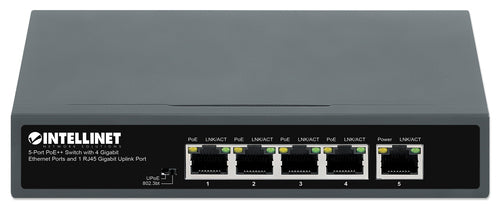

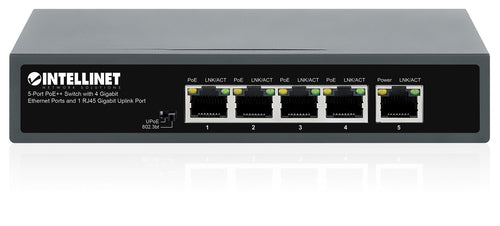

Intellinet 5-Port PoE++ Switch with 4 Gigabit Ethernet Ports and 1 RJ45 Gigabit Uplink Port
Intellinet 5-Port PoE++ Switch with 4 Gigabit Ethernet Ports and 1 RJ45 Gigabit Uplink Port
Normalpris
$223.99 USD
Normalpris
$246.99 USD
Udsalgspris
$223.99 USD
Levering beregnes ved betaling.
Antal
Tilgængelighed for afhentning kunne ikke indlæses
Intellinet 5-Port PoE++ Switch with 4 Gigabit Ethernet Ports and 1 RJ45 Gigabit Uplink Port
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
Shipping & Returns
Shipping & Returns
In-stock items ship within 1–2 business days. Free shipping on orders over $500. 30-day return policy — see our returns page for details.
Share
Specifications
Specifications
General
| Switch type | Unmanaged |
|---|
General
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
General
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
General
| Switching capacity | 10 Gbit/s |
|---|---|
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
General
| Rack mounting | No |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
General
| Fanless | Yes |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
General
| Power source | DC/PoE |
|---|---|

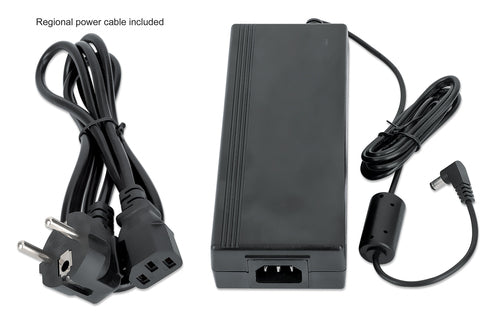

| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 55 V |
| Power consumption (max) | 150 W |
| Power protection features | Over voltage, Overload, Short circuit, Surge protection |
General
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 140 W |
General
| Warranty period | 3 year(s) |
|---|
General
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
General
| Width | 168 mm |
|---|---|
| Depth | 94 mm |
| Height | 32 mm |
| Weight | 395 g |
General
| Cables included | AC |
|---|---|
| Manual | Yes |
General
| Package width | 226 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 84 mm |
| Package weight | 1.45 kg |
General
| Certification | FCC, CE, RoHS, UKCA, NDAA |
|---|
General
| Master (outer) case width | 254 mm |
|---|---|
| Master (outer) case length | 446 mm |
| Master (outer) case height | 486 mm |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 10 pc(s) |
